Components Location

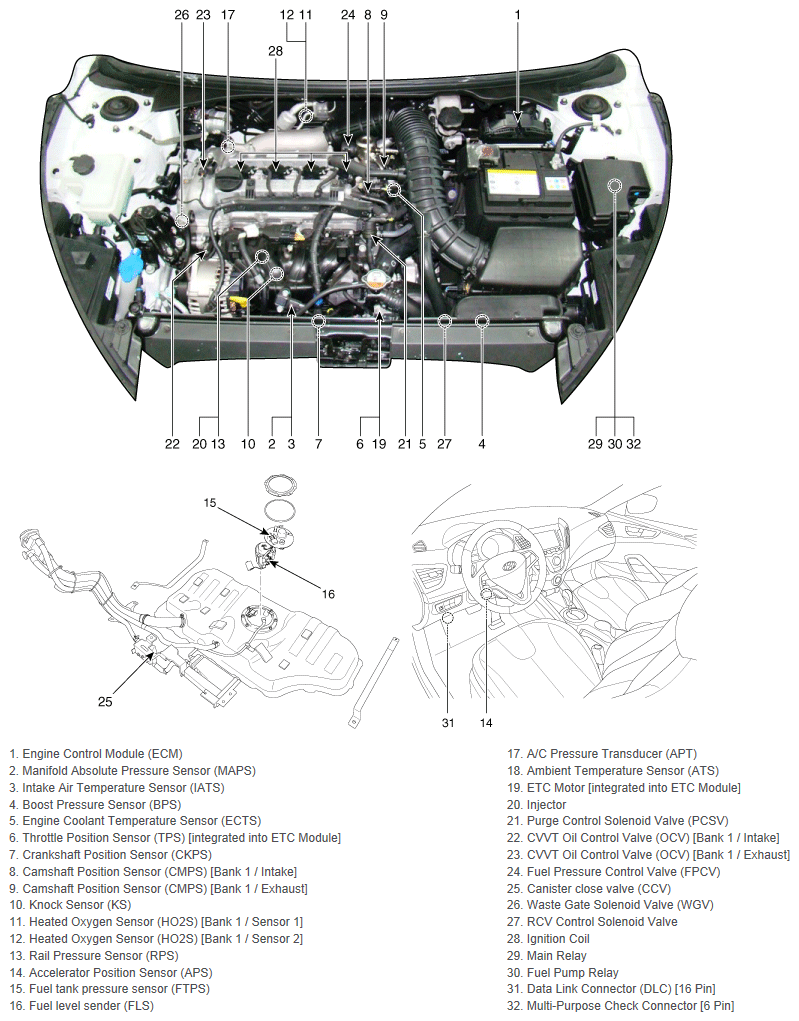

Fig 1: Locating Engine Control System Components (1 Of 4)
G12124746Courtesy of HYUNDAI MOTOR AMERICA

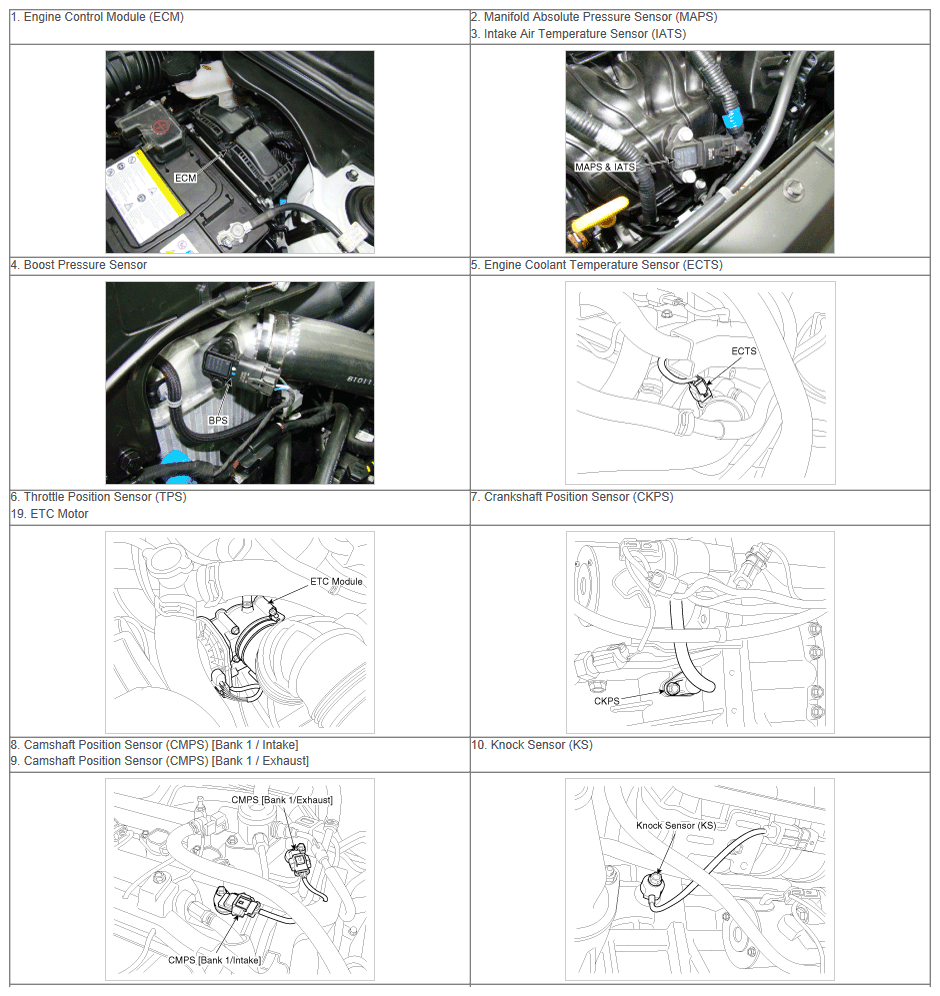

Fig 2: Locating Engine Control System Components (2 Of 4)
G12124747Courtesy of HYUNDAI MOTOR AMERICA

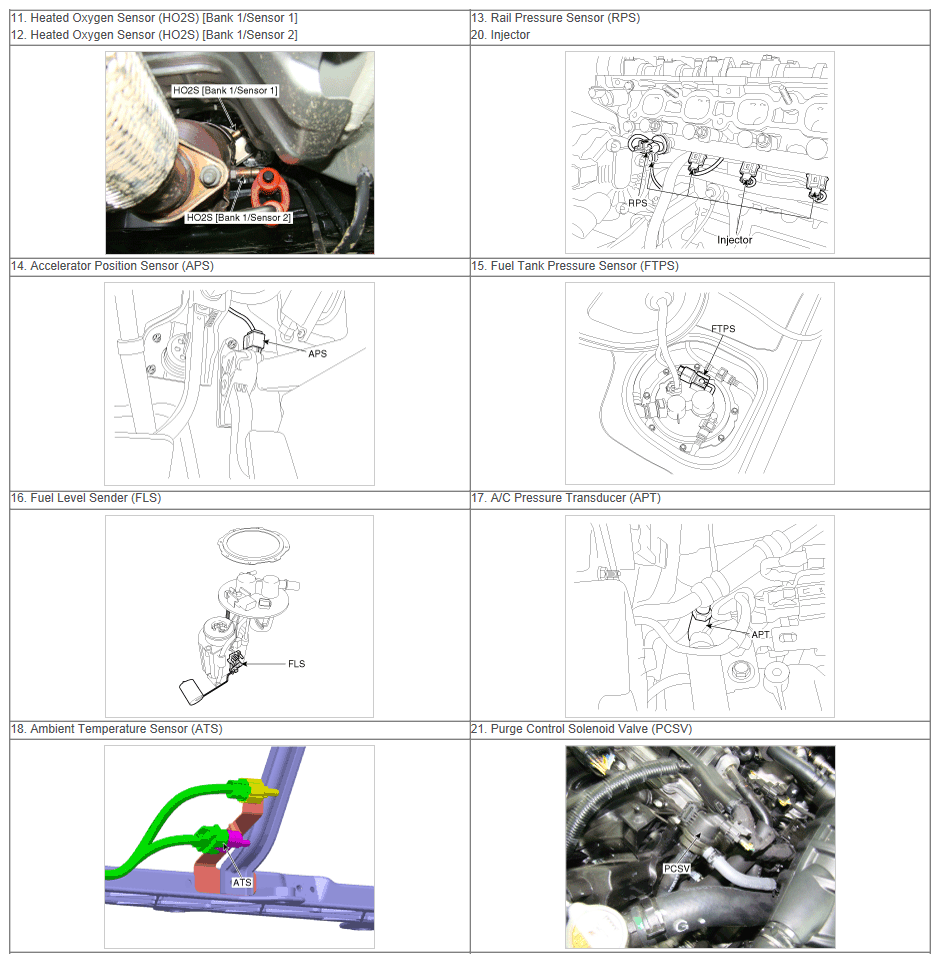

Fig 3: Locating Engine Control System Components (3 Of 4)
G12124748Courtesy of HYUNDAI MOTOR AMERICA

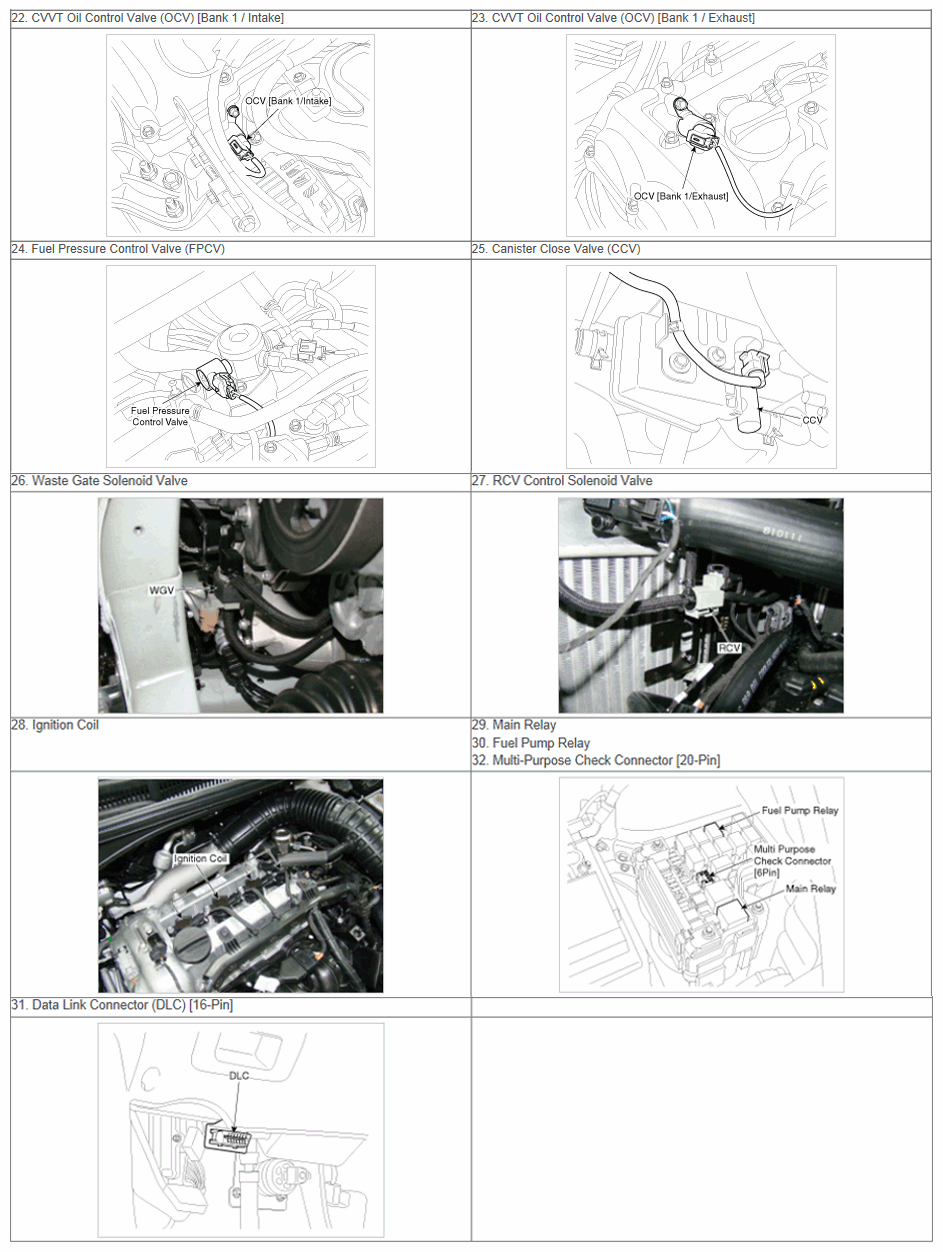

Fig 4: Locating Engine Control System Components (4 Of 4)
G12124749Courtesy of HYUNDAI MOTOR AMERICA
