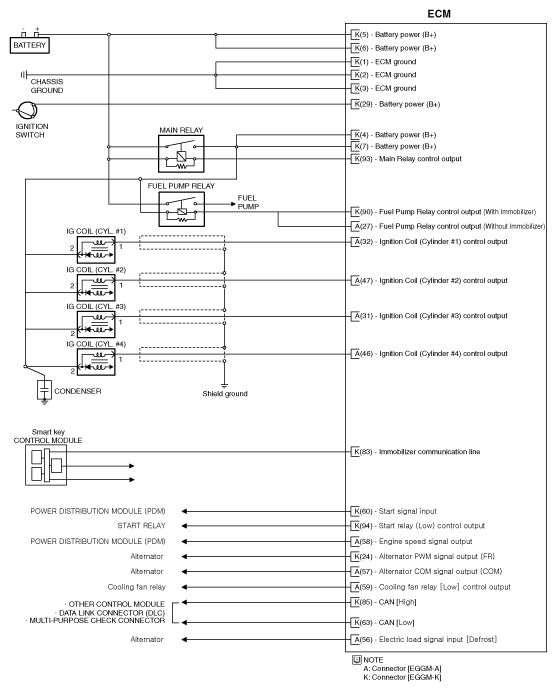

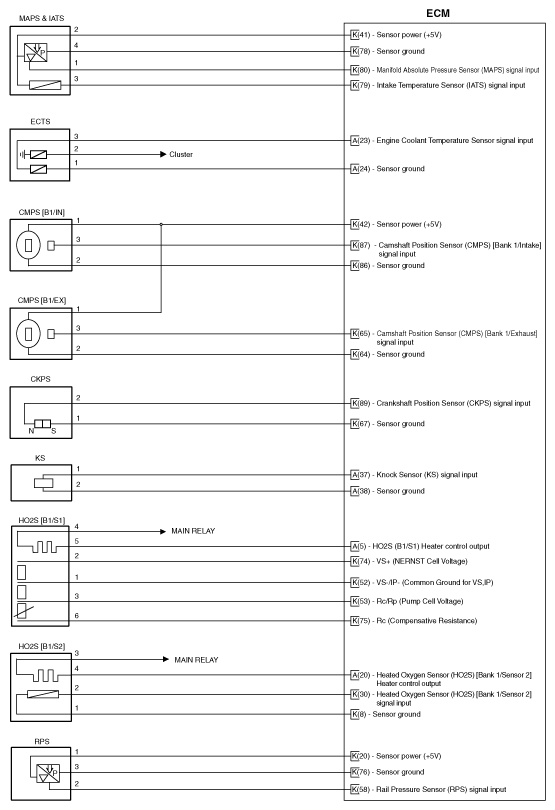

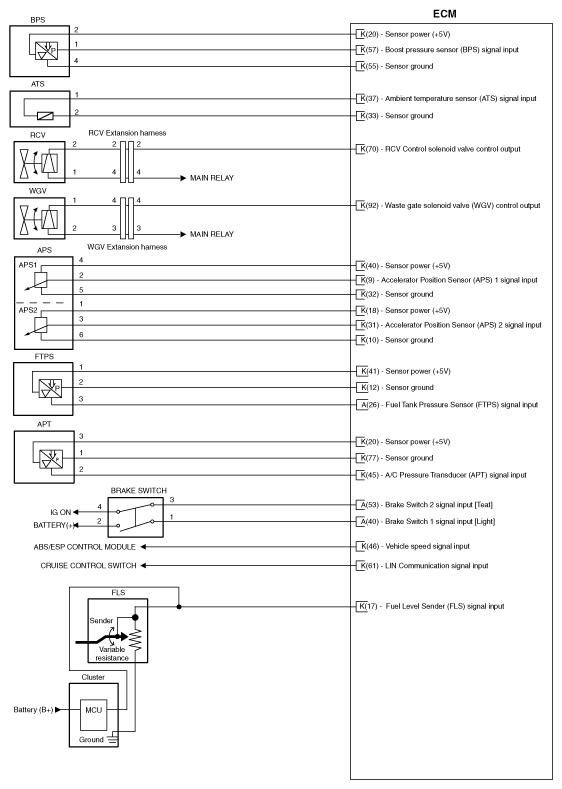

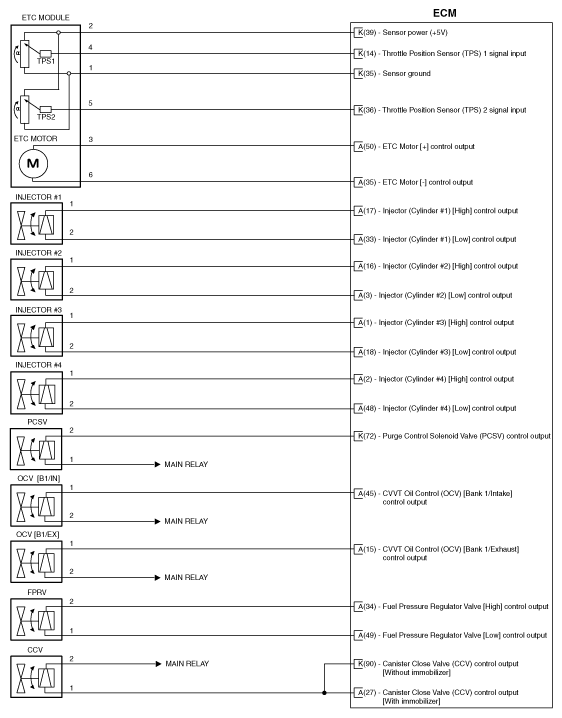

Home >> Hyundai >> 2017 >> Veloster Turbo, Standard Trans >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System - 1.6L T-GDI >> Engine Control Module (ECM) >> Schematic Diagrams >> ECM Terminal And Input/Output Signal [A/T] >> Circuit Diagram >> M/T
