Components Location

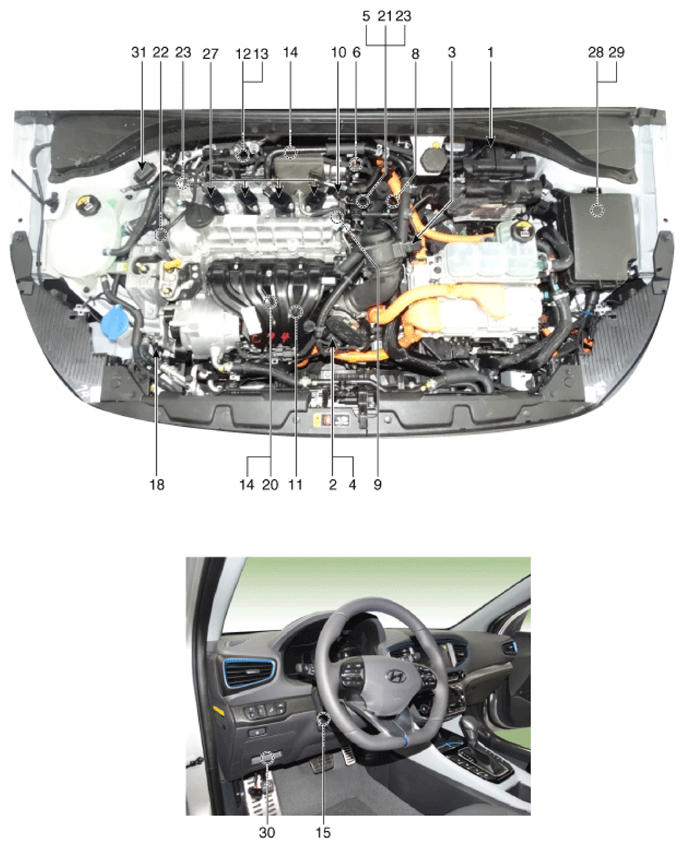

G12727095Courtesy of HYUNDAI MOTOR AMERICA

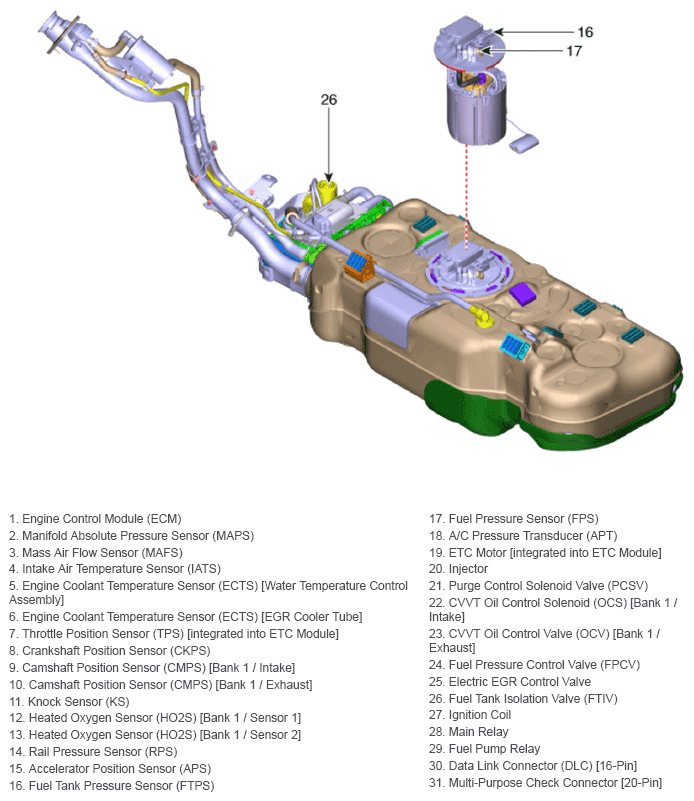

G12727096Courtesy of HYUNDAI MOTOR AMERICA

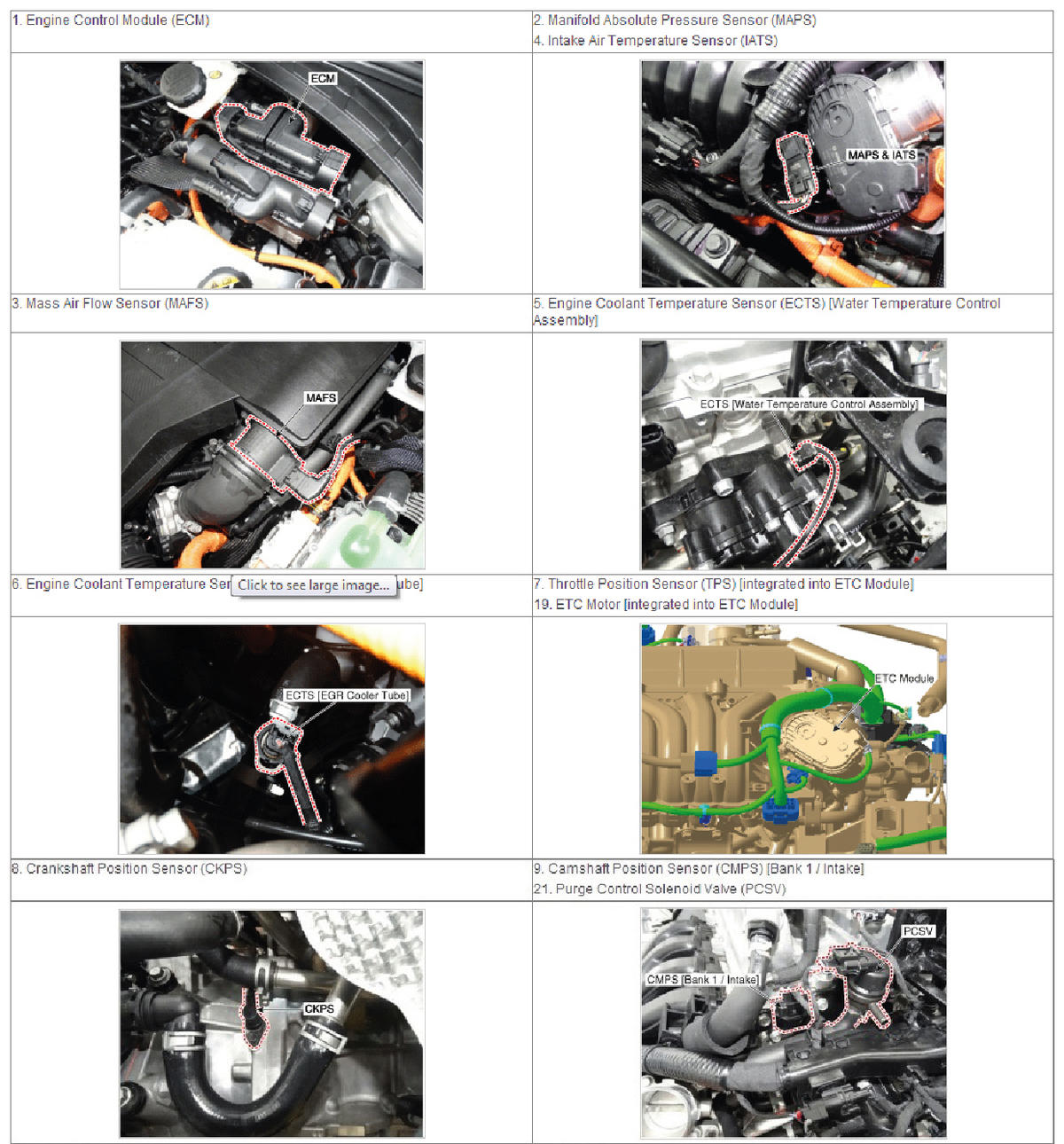

G12727097Courtesy of HYUNDAI MOTOR AMERICA

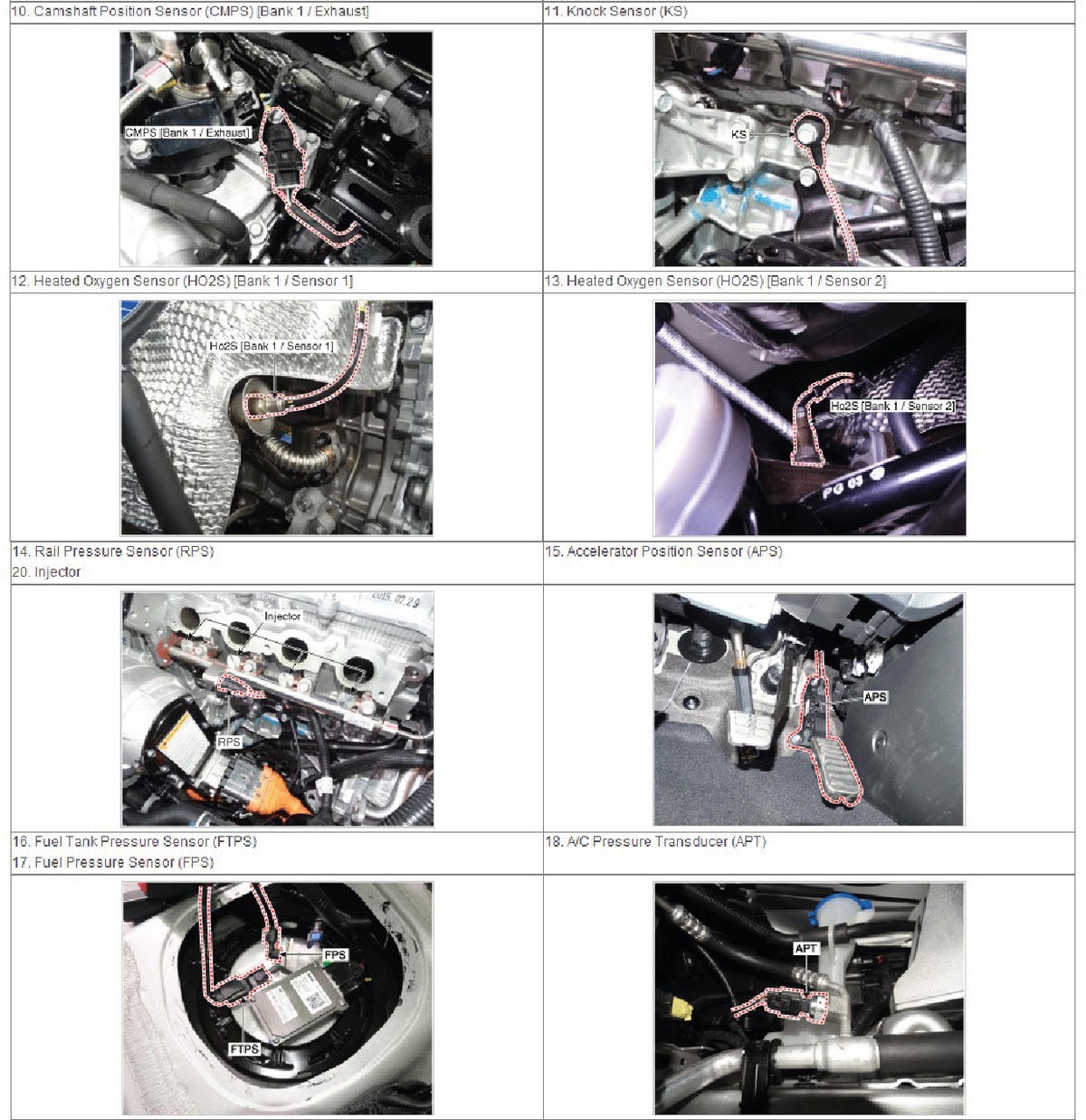

G12727098Courtesy of HYUNDAI MOTOR AMERICA

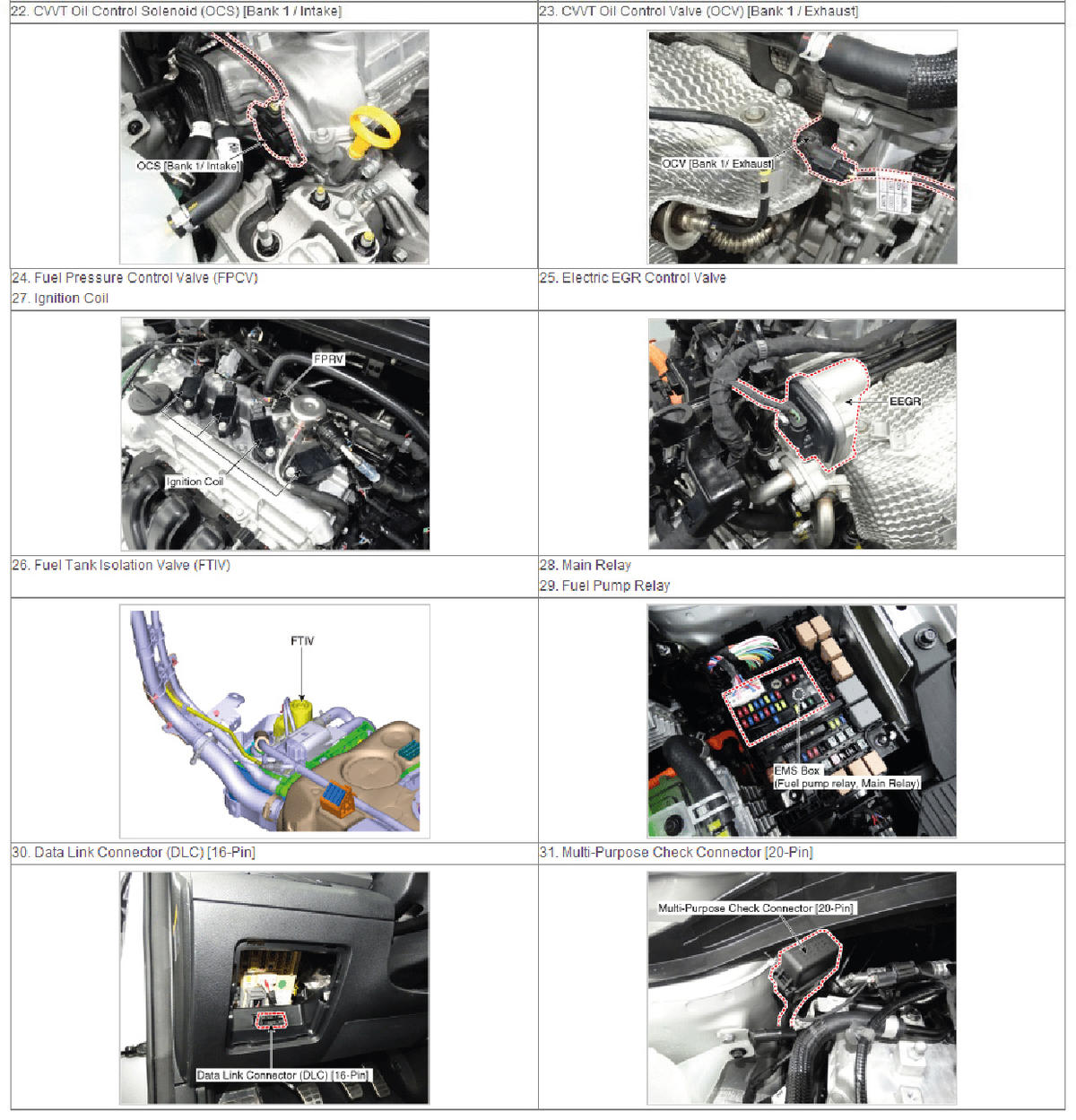

G12727099Courtesy of HYUNDAI MOTOR AMERICA
