[In The Case Of Installing New ECM]

Perform "TEACHING MODE PROCEDURE DESCRIPTION (STEP BY STEP) " procedure with GDS.

(Refer to "IMMOBILIZER SYSTEM DIAGNOSIS (PHEV) ")

• Insert the key (or press the start button) and turn it to the IGN ON and OFF position. Then the ECM learns the smart key information automatically.

1. Turn ignition switch OFF and disconnect the negative (-) battery cable.

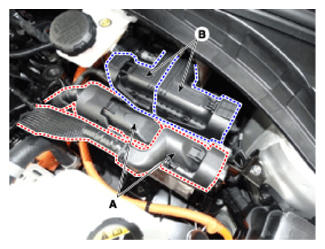

2. Disconnect the TCM Connector (A).
3. Disconnect the ECM Connector (B).

   Courtesy of HYUNDAI MOTOR AMERICA

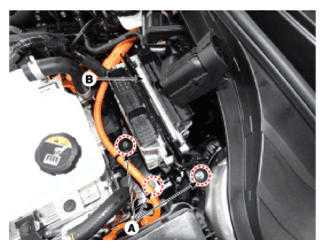

4. Remove the ECM (C) from the bracket after removing the screw (A) and nut (B).

   Courtesy of HYUNDAI MOTOR AMERICA

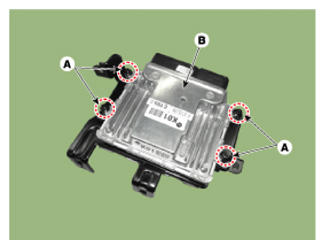

5. Remove ECM (B) from the ECM and TCM bracket after loosening the bolt and nut (A).

   Courtesy of HYUNDAI MOTOR AMERICA
