Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Remove the intake manifold.

    (Refer to "INTAKE MANIFOLD ")

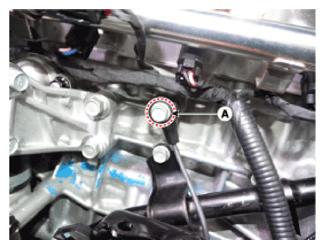

  3. Remove the installation bolt (A), and then remove the sensor from the cylinder block.
    G12727153Courtesy of HYUNDAI MOTOR AMERICA
