Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.

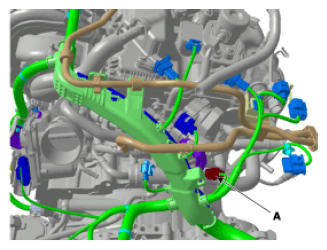

  2. Disconnect the engine coolant temperature sensor connector (A) and then remove the sensor.
    G12787093Courtesy of HYUNDAI MOTOR AMERICA
  3. Supplement the engine coolant.

    (Refer to "COOLANT ")
