Repair Procedures: Installation

Install in the reverse order of removal.

NOTE:

Before installing, check that the shift lever and manual control lever are placed in the "N" position.

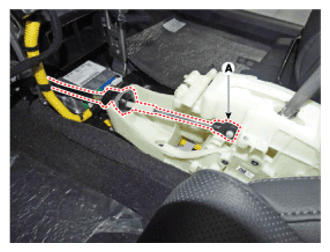

Insert the shift cable after checking the direction of projection (A) to prevent wrong assembly.

Courtesy of HYUNDAI MOTOR AMERICA
