Function Of Safety Power Window: Notes

When driver door power window auto-up switch is operated, safety function is activated.

1. Safety function condition

   When detect the force of 100N (using the 10N/mm spring) during the window rising, window is reversed.

2. Length of window reversing (except holding the auto-up switch)

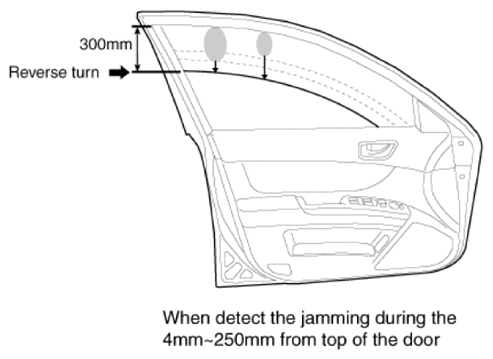

   • When detect the jamming during the 4 mm - 250 mm from top of the door.
     • Window is reversed until 300 mm from top of the door.

       Courtesy of HYUNDAI MOTOR AMERICA

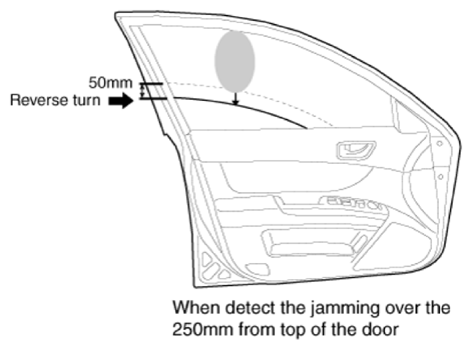

     • When detect the jamming over the 250 mm from top of the door.
     • Window is reversed until 50 mm from jamming position.

       Courtesy of HYUNDAI MOTOR AMERICA

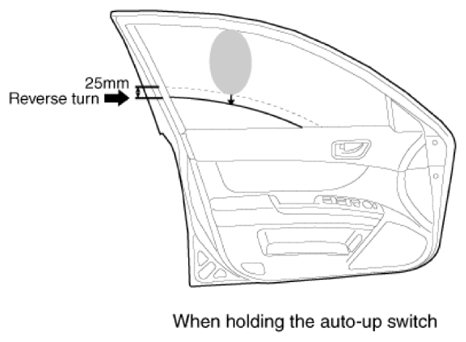

3. Length of window reversing (holding the auto-up switch)
   • When detect the jamming during holding the auto-up switch.
   • Window is reverse until 25 mm from jamming position.
   • Auto-up function is not available during the 5 seconds from above condition.
   • When holding the auto-up switch, window is operated as a manual-up function. (Safety function is not activated.)
   • When holding the auto-up switch after 5 seconds from above condition.
   • Window is reverse until 25 mm from jamming position.

   Courtesy of HYUNDAI MOTOR AMERICA

4. Safety function is not available area

   Safety function is not available during the 4 mm from top of the door.
