Power Window Main Switch Inspection
- Disconnect the negative (-) battery terminal.
- Remove the front door trim.
(Refer to Body - "FRONT DOOR TRIM ")

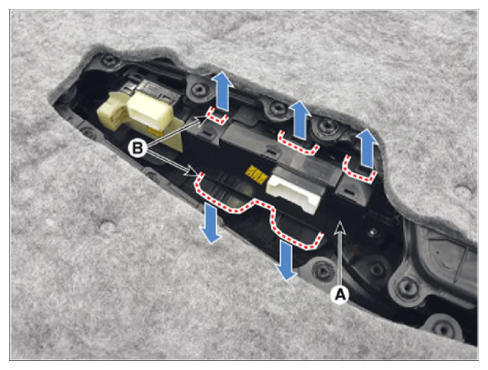

- Remove the power window switch assembly (A) by pulling out both ends of the switch holders (B).

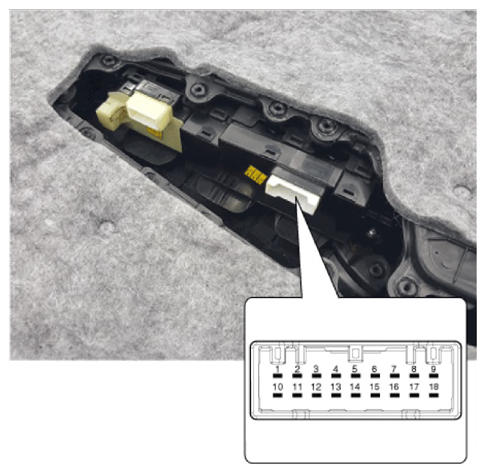

- Check for continuity between the terminals in each switch position according to the table. If the continuity condition is not normal, replace the switch.

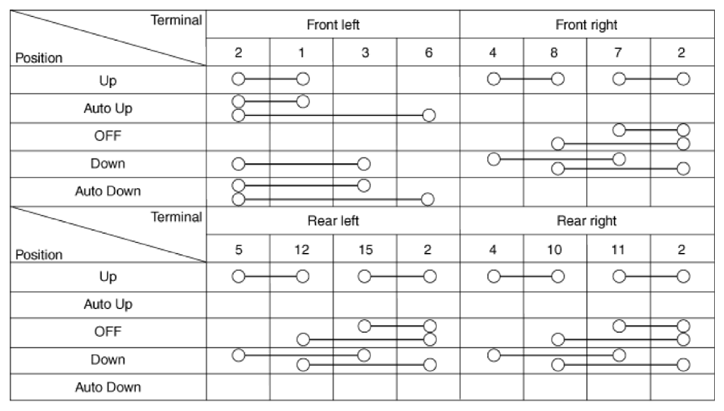

[Driver Safety - Auto Up/Down]

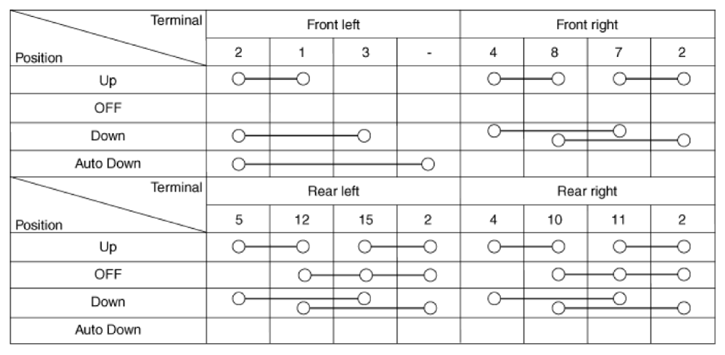

[Driver Auto Down]
