Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the center facia panel

    (Refer to Body - "CRASH PAD ")

  3. Remove the audio unit.

    (Refer to Audio - "AUDIO UNIT ")

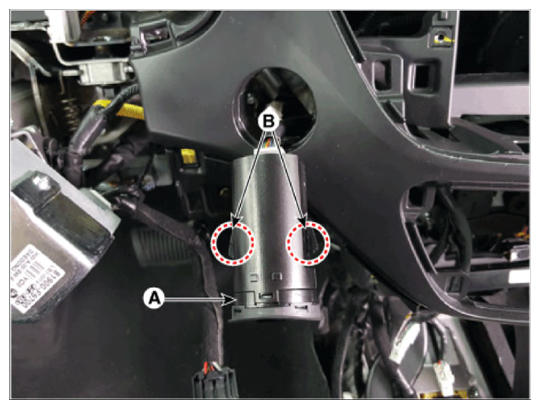

  4. Remove the start/stop button (A) after disengaging the mounting clip (B).
    G14078938Courtesy of HYUNDAI MOTOR AMERICA

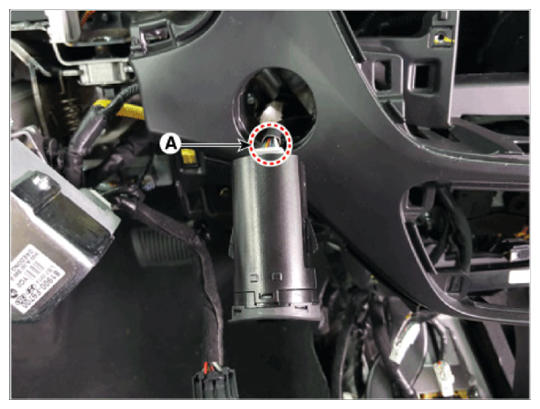

  5. Disconnect the start/stop button connector (A).
    G14078939Courtesy of HYUNDAI MOTOR AMERICA
