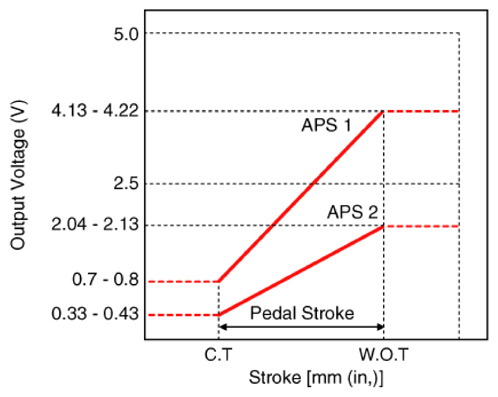

Accelerator Position Sensor (APS): Specifications: Specification

Items Specification
APS1 APS2
C.T 0.7~ 0.8 0.33 ~ 0.43
W.O.T 4.13~4.22 2.04 ~ 2.13
G14076966Courtesy of HYUNDAI MOTOR AMERICA
