Description And Operation: Description

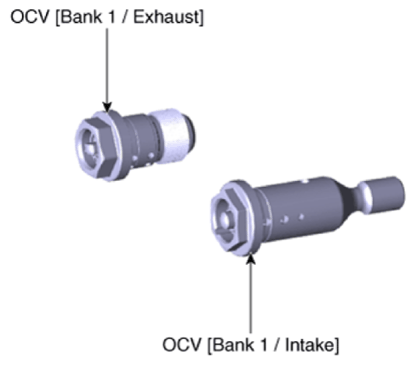

The Continuously Variable Valve Timing (CVVT) system controls the amount of valve overlap by varying the amount of oil flow into an assembly mounted on the intake camshaft through ECM control of an oil control valve.

As oil is directed into the chambers of the CVVT assembly, the cam phase is changed to suit various performance and emissions requirements.

1. When camshaft rotates engine rotation-wise: Intake-Advance/Exhaust-Retard
2. When camshaft rotates counter engine rotation-wise: Intake - Retard/Exhaust - Advance

   Courtesy of HYUNDAI MOTOR AMERICA
