Bank 1/Intake

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.

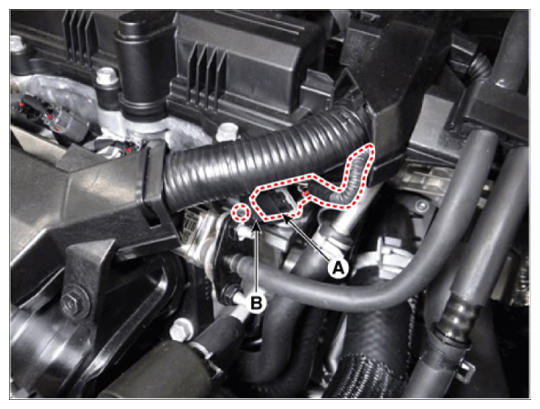

  2. Disconnect the camshaft position sensor connector (A).
  3. Remove the installation bolt, and then remove the sensor (B).

    Camshaft position sensor installation bolt:

    7.8~11.8 N.m (0.8 ~ 1.2 kgf.m, 5.8 ~ 8.7 lb-ft)

    G14076948Courtesy of HYUNDAI MOTOR AMERICA
