Components Location

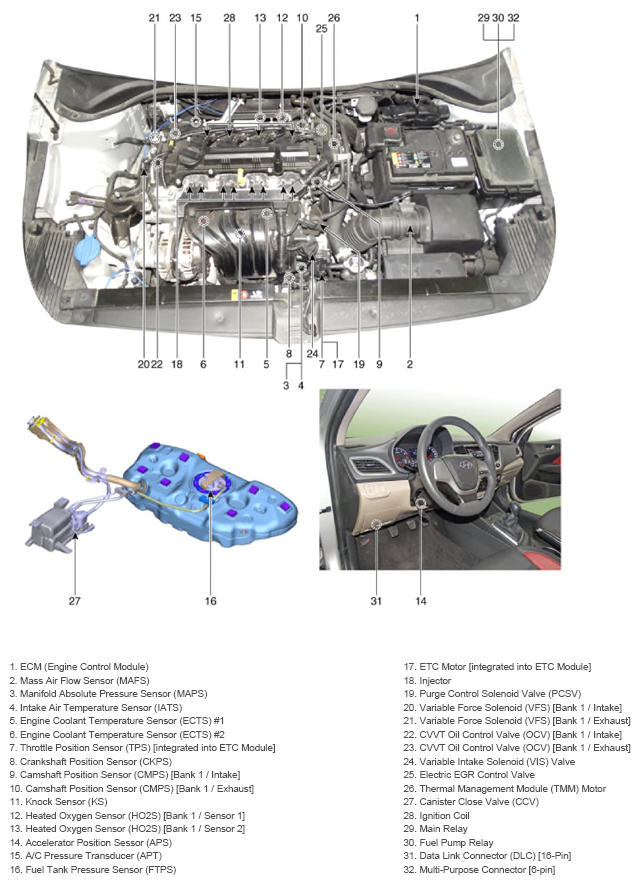

G14076874Courtesy of HYUNDAI MOTOR AMERICA

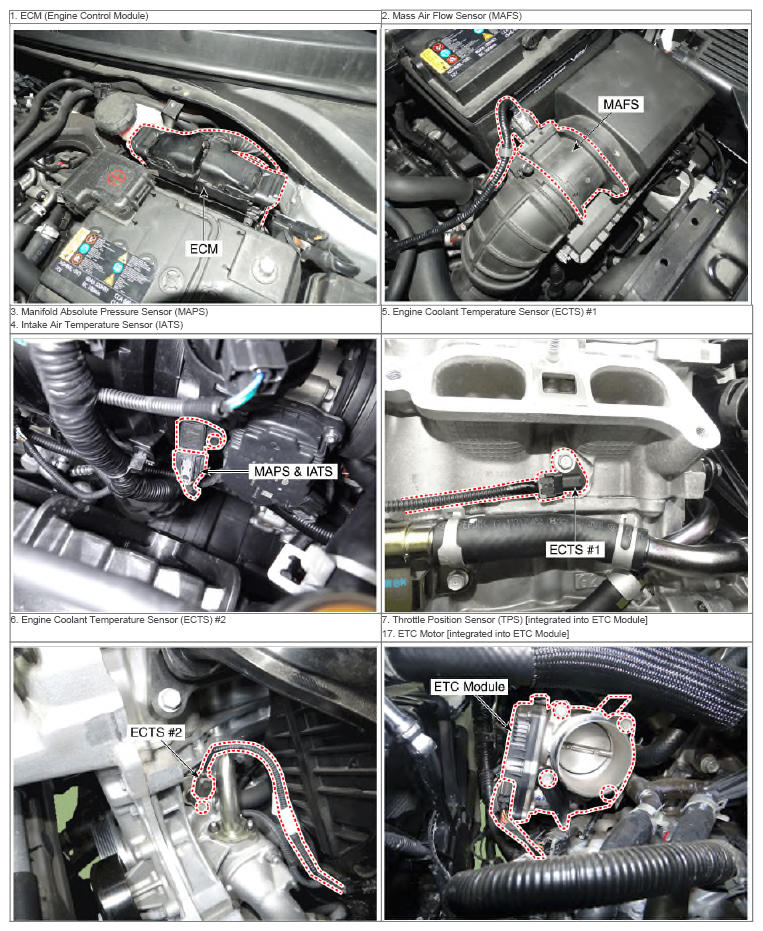

G14076875Courtesy of HYUNDAI MOTOR AMERICA

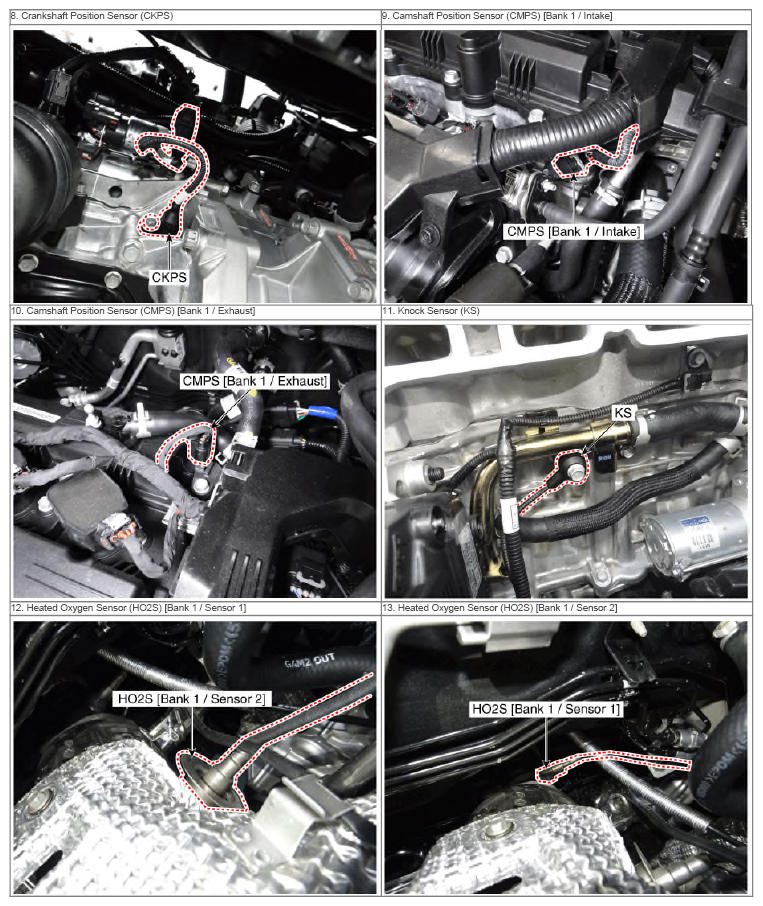

G14076876Courtesy of HYUNDAI MOTOR AMERICA

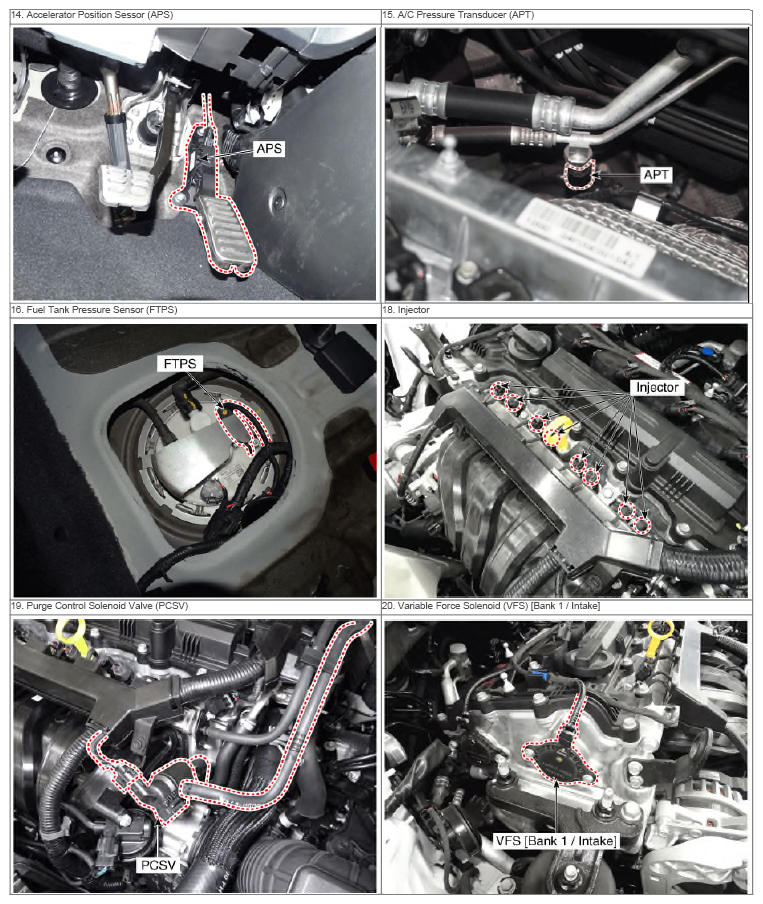

G14076877Courtesy of HYUNDAI MOTOR AMERICA

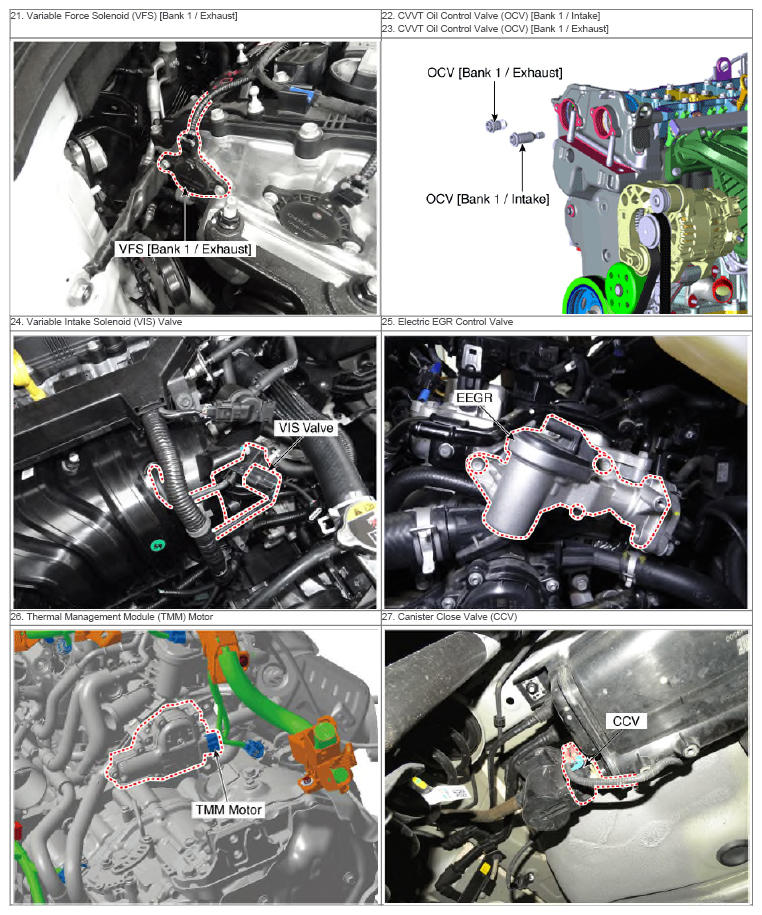

G14076878Courtesy of HYUNDAI MOTOR AMERICA

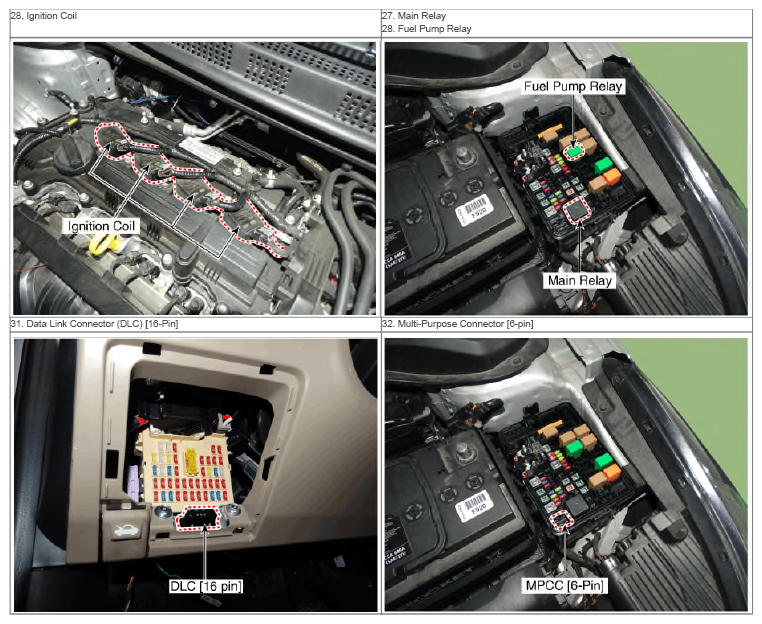

G14076879Courtesy of HYUNDAI MOTOR AMERICA
