Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Remove the rear seat.

    (Refer to Body - "REAR SEAT ")

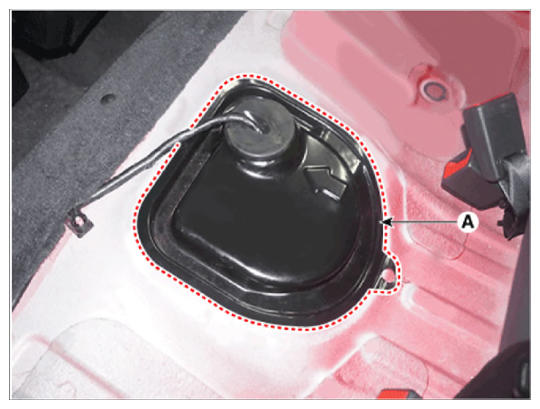

  3. Remove the fuel pump service cover (A).
    G14076977Courtesy of HYUNDAI MOTOR AMERICA

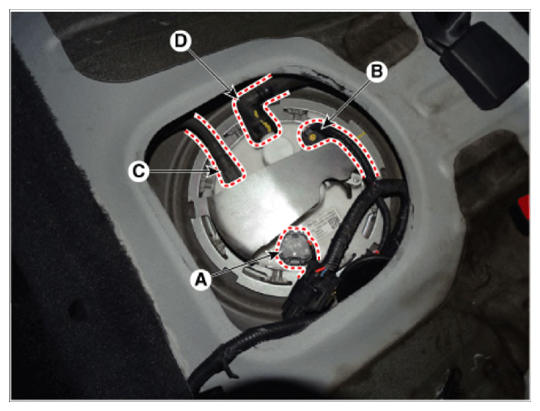

  4. Disconnect the fuel pump connector (A).
  5. Disconnect the fuel tank pressure sensor connector (B).
  6. Disconnect the fuel feed tube quick connector (C).
  7. Disconnect the vapor tube quick connector (D).
    G14076978Courtesy of HYUNDAI MOTOR AMERICA

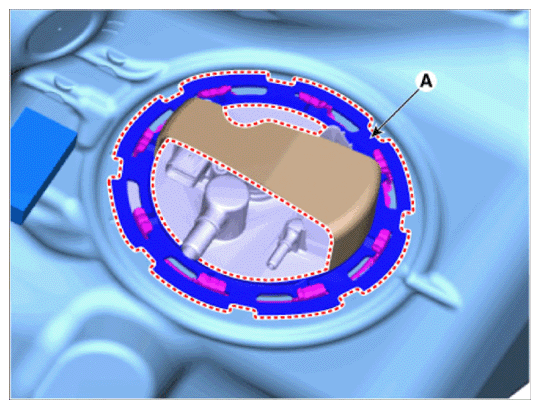

  8. Remove the locking ring (A) by using the SST [SST.: 09310-F3100] from the fuel tank.
    NOTE:
    • When removing the plate cover, be careful not to damage the fuel tank and fuel pump.
    • When removing the plate cover, press the upper area with hand and rotate the wrench counter clockwise.
    G14076979Courtesy of HYUNDAI MOTOR AMERICA

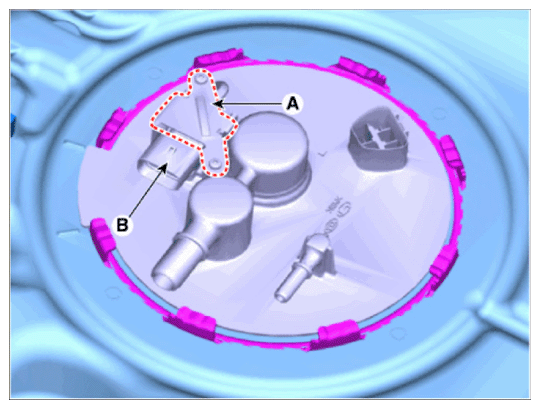

  9. Remove the fuel tank pressure sensor bracket (A).
  10. Remove the fuel tank pressure sensor (B).
    G14076980Courtesy of HYUNDAI MOTOR AMERICA
