Bank 1/Sensor 1
- Turn the ignition switch OFF and disconnect the battery negative (-) cable.

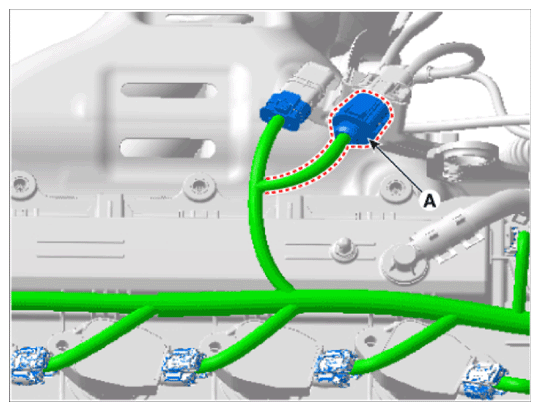

- Disconnect the heated oxygen sensor connector (A).

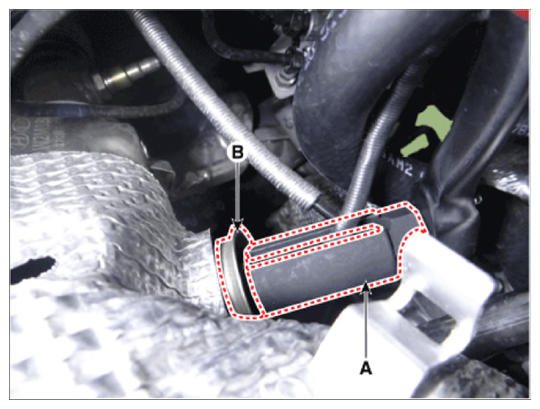

- Remove the heated oxygen sensor (B) using the special tool (A) [SST No.: 09392-1Y100] as shown below.NOTE:
- Note that the SST (Part No.: 09392-2H100 or 09392-1Y100) is useful when removing the heated oxygen sensor.
Heated oxygen sensor installation:
40.0 ~ 60.0 N.m (4.1 ~ 6.1 kgf.m, 29.5 ~ 44.3 lb-ft)
