Repair Procedures: Removal
- Turn the ignition switch OFF and disconnect the battery negative (-) cable.
- Remove the intake manifold.
(Refer to Engine Mechanical System - "INTAKE MANIFOLD ")

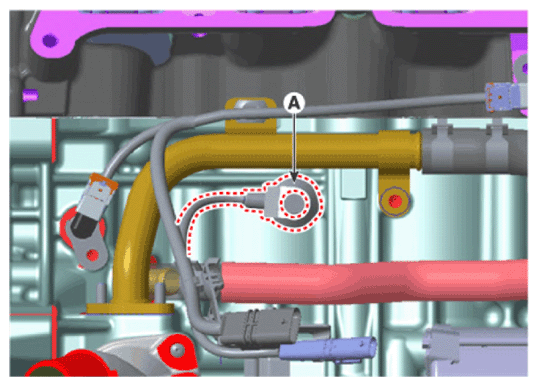

- Remove the installation bolt (A), and then remove the sensor from the cylinder block.
Knock sensor installation bolt:
18.6 ~ 24.5 N.m (1.9~2.5 kgf.m, 13.7~18.1 lb-ft)
