Repair Procedures: Removal
- Turn the ignition switch OFF and disconnect the battery (-) cable.

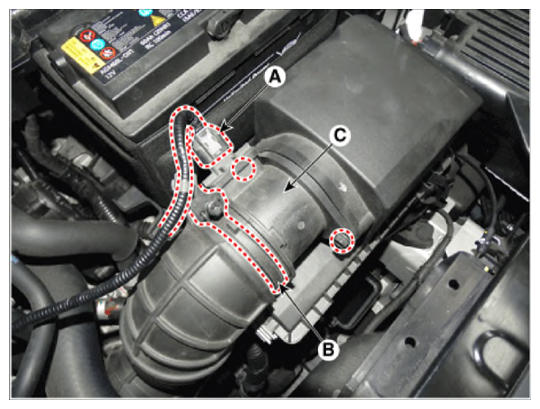

- Disconnect the MAFS connector (A).
- Remove the clamp (B).
- Remove the installation bolts and then remove the MAFS (C).
Mass air flow sensor clamp installation bolt:
2.9 - 4.9 N.m (0.3 - 0.5 kgf.m, 2.2 - 3.6 lb-ft)
Mass air flow sensor installation bolt:
2.9 - 4.9 N.m (0.3 - 0.5 kgf.m, 2.2 - 3.6 lb-ft)
