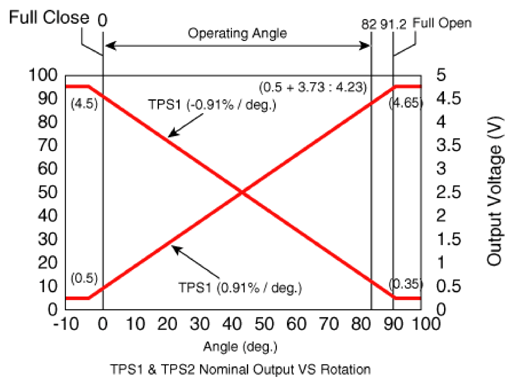

Throttle Position Sensor (TPS)
Type: Absolute Rotary Sensor IC
Specification
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
