Removal and Installation

Remove the ignition coil.
(Refer to "IGNITION COIL ")

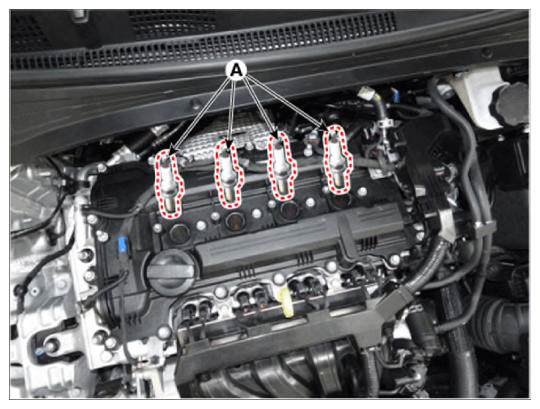

Using a spark plug wrench, remove the spark plug (A).

Courtesy of HYUNDAI MOTOR AMERICA
Install in the reverse order of removal.
Tightening torque:

14.7-24.5 N.m (1.5-2.5 kgf.m, 10.8-18.0 Ib-ft)
NOTE:
- Be careful that no contaminates enter into spark plug holes.
