Repair Procedures: Removal

  1. Move the shift lever to 4th gear.
  2. Turn OFF ignition switch and disconnect the negative (-) battery cable.
  3. Remove the air cleaner assembly and air duct.

    (Refer to Engine Mechanical System - "AIR CLEANER ")

  4. Remove the battery and battery tray.

    (Refer to Engine Electrical System - "BATTERY , and BATTERY TRAY ")

  5. Remove the Engine Control Module (ECM).

    (Refer to Engine Control System - "ENGINE CONTROL MODULE (ECM) ")

  6. Separate the control cable.

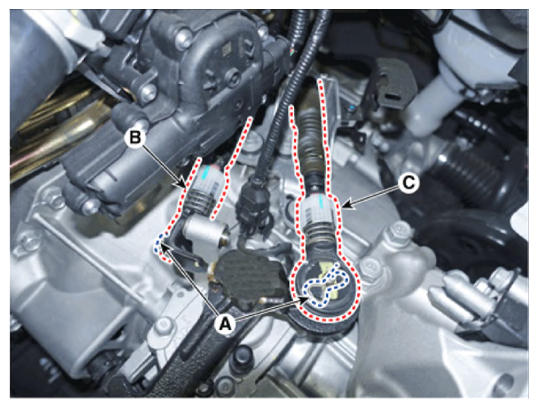

    1. Remove the snap pin (A).
    2. Separate the select cable (B) and then shift cable (C).
    G14077193Courtesy of HYUNDAI MOTOR AMERICA

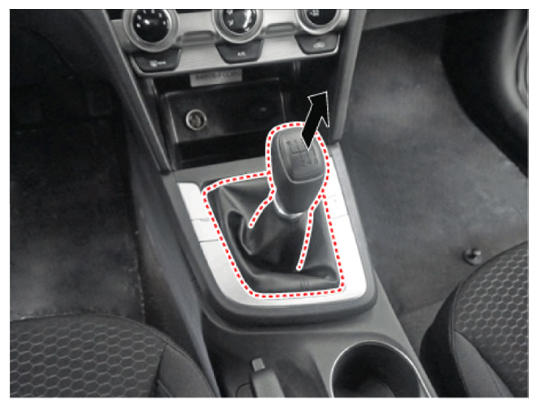

  7. Remove the shift knob & boot (A).
    G14077194Courtesy of HYUNDAI MOTOR AMERICA
  8. Remove the floor console assembly.

    (Refer to Body - "FLOOR CONSOLE ASSEMBLY ")

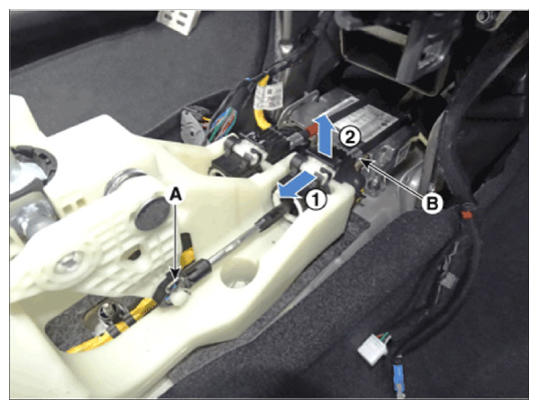

  9. Separate the select cable (B), after removing the snap pin (A).
    G14077195Courtesy of HYUNDAI MOTOR AMERICA
  10. Remove the shift cable.

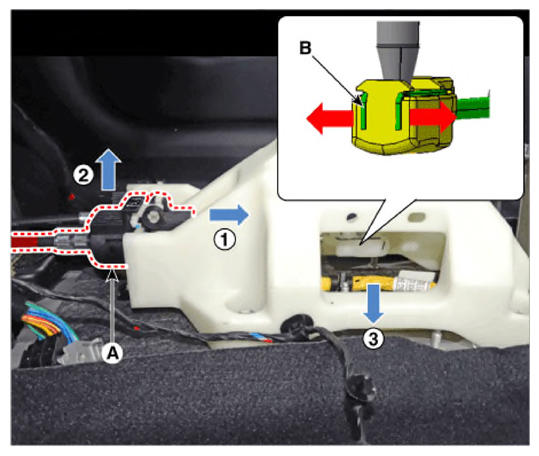

    1. Remove the cable socket (A), after release the lock.
    2. Remove the clip, in the shape of a "U" (B), from the cable end by spreading it towards both sides.
    G14077196Courtesy of HYUNDAI MOTOR AMERICA

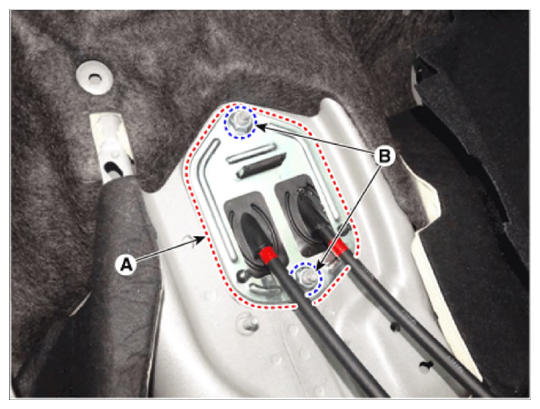

  11. Loosen the nuts and then removing the retainer (A).
    G14077197Courtesy of HYUNDAI MOTOR AMERICA

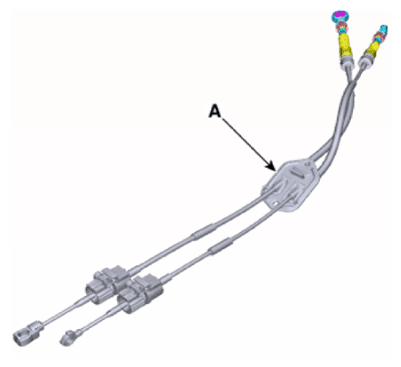

  12. Remove the control cable assembly (A) from the vehicle.
    G14077198Courtesy of HYUNDAI MOTOR AMERICA
