Repair Procedures: Installation

  1. To install, reverse the removal procedures.
    CAUTION:
    • New shift lever assembly is mounted in the 4th fixing pin.

      After installation, remove the 4th fixed pin.

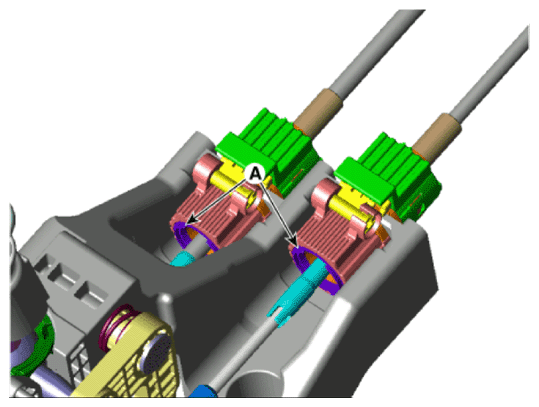

    • After installing the select cable and shift cable socket, check portion (A) to see if it projects outwards from the cap.
      G14077191Courtesy of HYUNDAI MOTOR AMERICA
    • Check operating of lever of transaxle side when operating shift lever after assembly. (1~6, R)
    • If there is sticky feel, adjust the control cable length again.

    (Refer to Control Cable - "INSTALLATION ")
