Assist/Rear Power Window Switch Inspection
- Disconnect the negative (-) battery terminal.
- Remove the front door trim.
(Refer to Body - "FRONT DOOR TRIM ")
(Refer to Body - "REAR DOOR TRIM ")

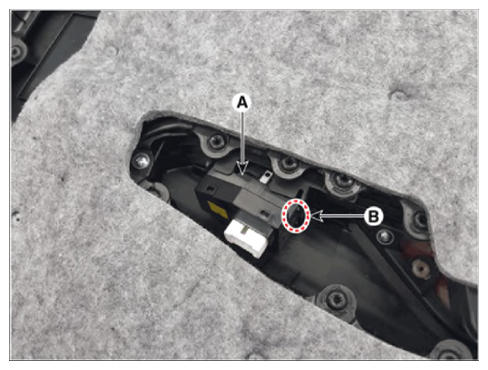

- Remove the power window switch (A) after disengaging the mounting clips (B).

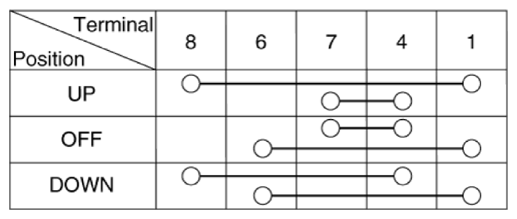

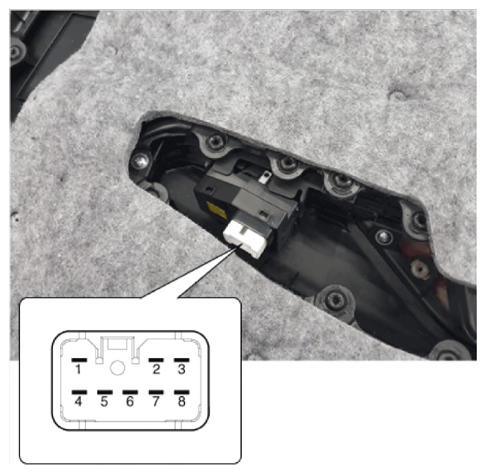

- Check for continuity between the terminals in each switch position according to the table. If the continuity condition is not normal, replace the switch.
