Engine Control System - 2.0L (Except HEV)
>>
Crankshaft Position Sensor (CKPS)
>>
Troubleshooting
>>
Signal Waveform
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

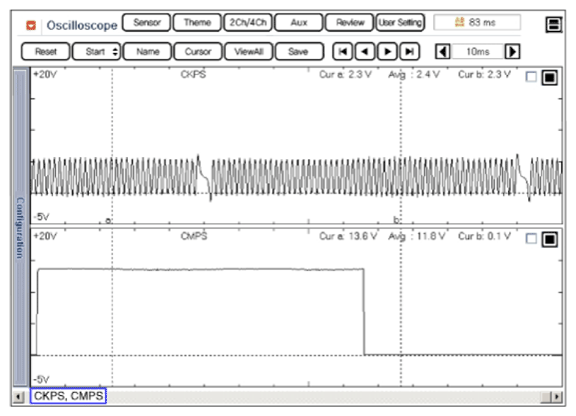

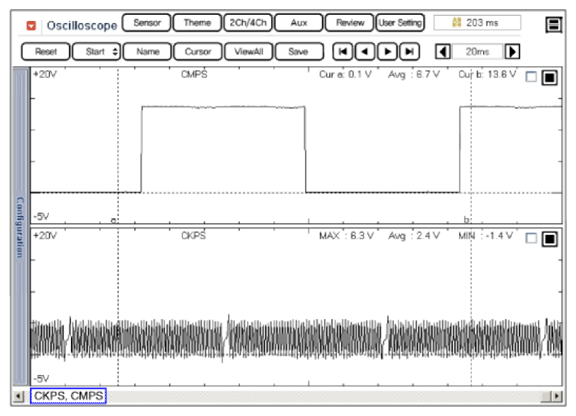

Signal Waveform
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
