Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) terminal.

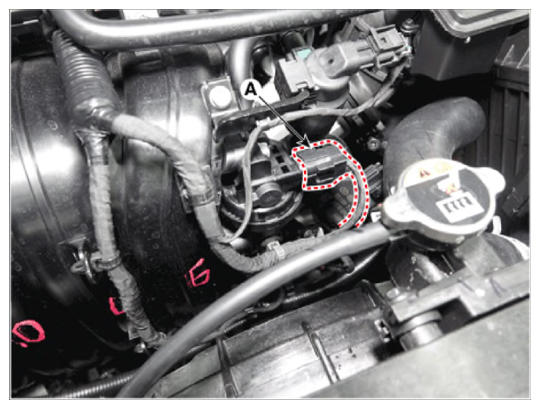

  2. Disconnect the variable intake solenoid valve connector (A).
    G14607645Courtesy of HYUNDAI MOTOR AMERICA

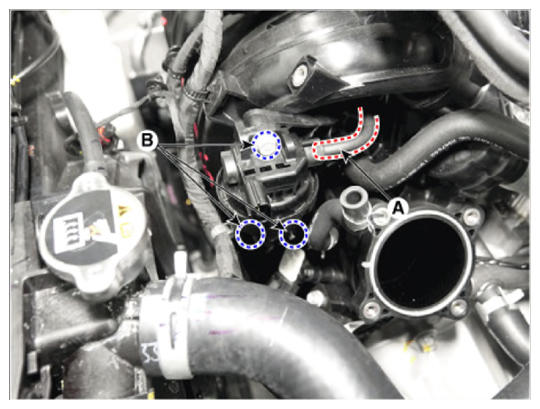

  3. Disconnect the vacuum hose (A).
  4. Remove the VIS valve mounting bolts (B).

    Tightening Torque:

    9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

    G14607646Courtesy of HYUNDAI MOTOR AMERICA
