Repair Procedures: Removal

  1. Turn ignition switch OFF and disconnect the battery negative (-) terminal.

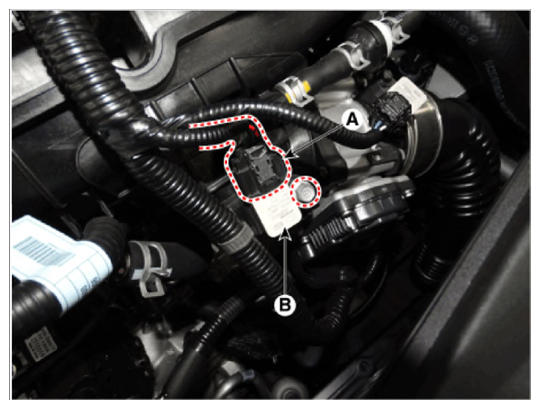

  2. Disconnect the boost pressure sensor connector (A).
  3. Remove the sensor (B) after remove the mounting bolt.

    Tightening Torque:

    9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

    G14596340Courtesy of HYUNDAI MOTOR AMERICA
