ECTS #1
- Turn ignition switch OFF and disconnect the battery negative (-) terminal.
- Remove the intercooler outlet hose.
(Refer to Engine Mechanical System - "INTERCOOLER ")
- Disconnect the ETC connector.

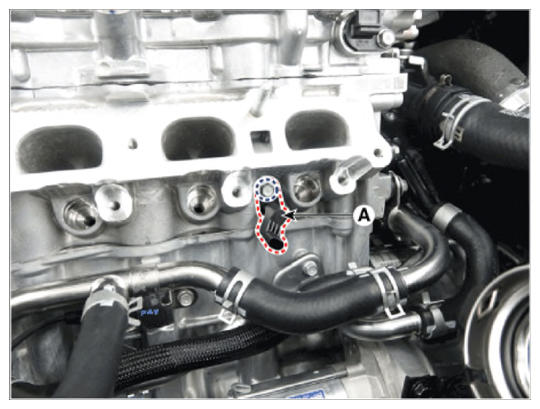

- Loosen the mounting bolt (A).
Tightening Torque:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)
