Repair Procedures: Removal

  1. Turn ignition switch OFF and disconnect the battery negative (-) terminal.

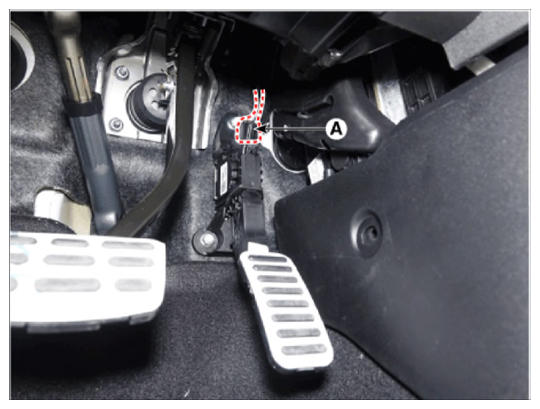

  2. Disconnect the accelerator position sensor connector (A).
    G14596391Courtesy of HYUNDAI MOTOR AMERICA

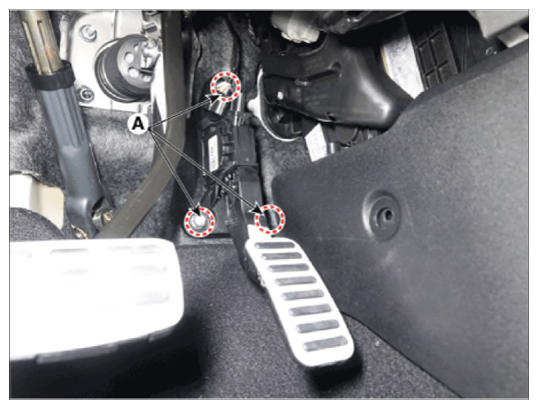

  3. Remove the accelerator pedal module after loosening the nut (A).
    G14596392Courtesy of HYUNDAI MOTOR AMERICA
