Components Location

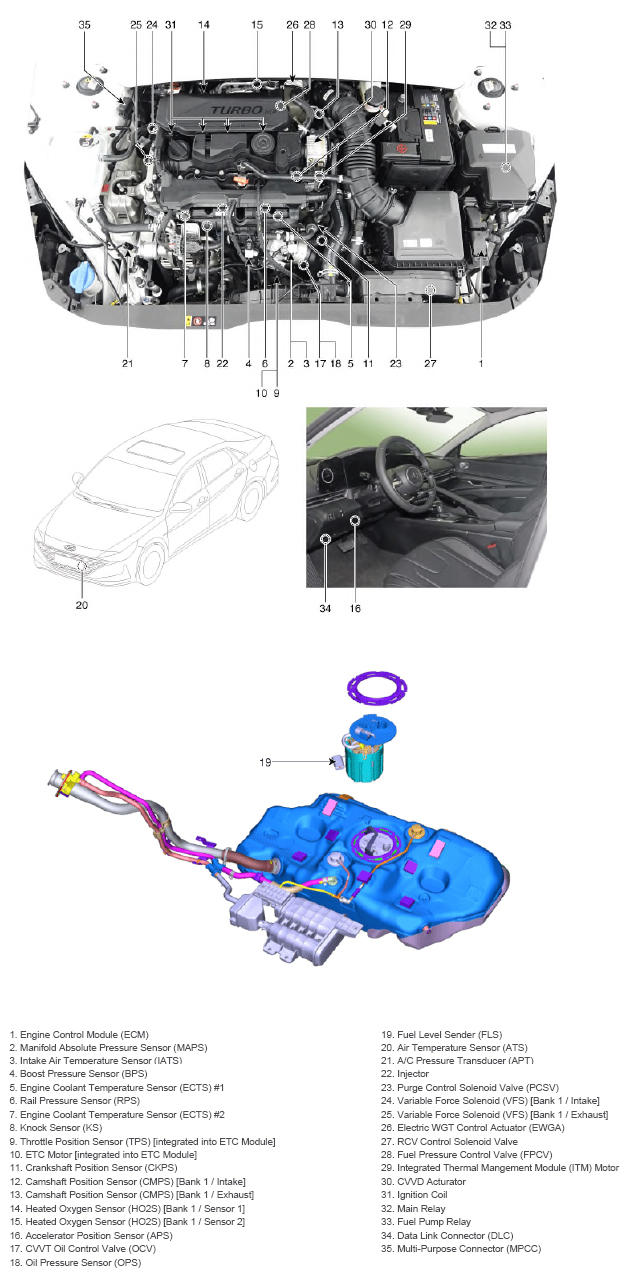

G14596325Courtesy of HYUNDAI MOTOR AMERICA

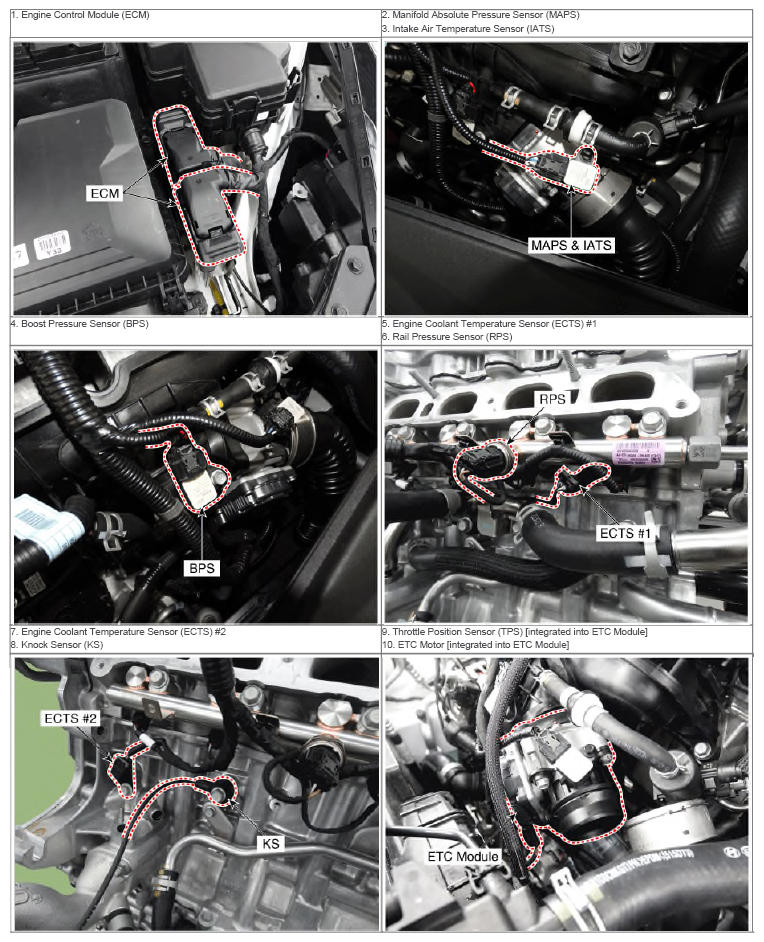

G14596326Courtesy of HYUNDAI MOTOR AMERICA

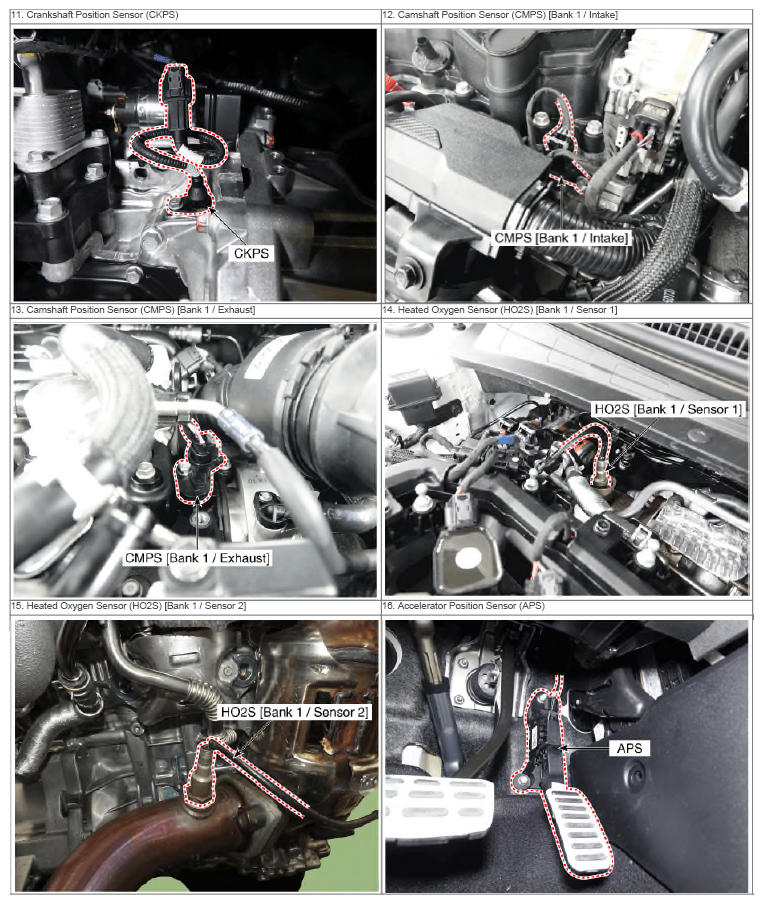

G14596327Courtesy of HYUNDAI MOTOR AMERICA

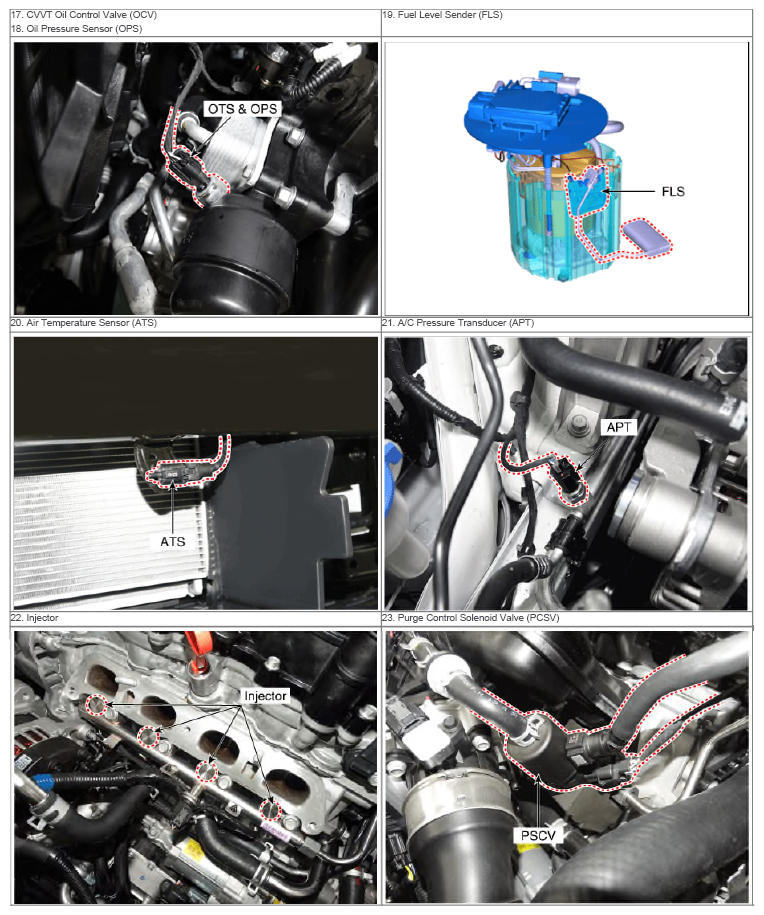

G14596328Courtesy of HYUNDAI MOTOR AMERICA

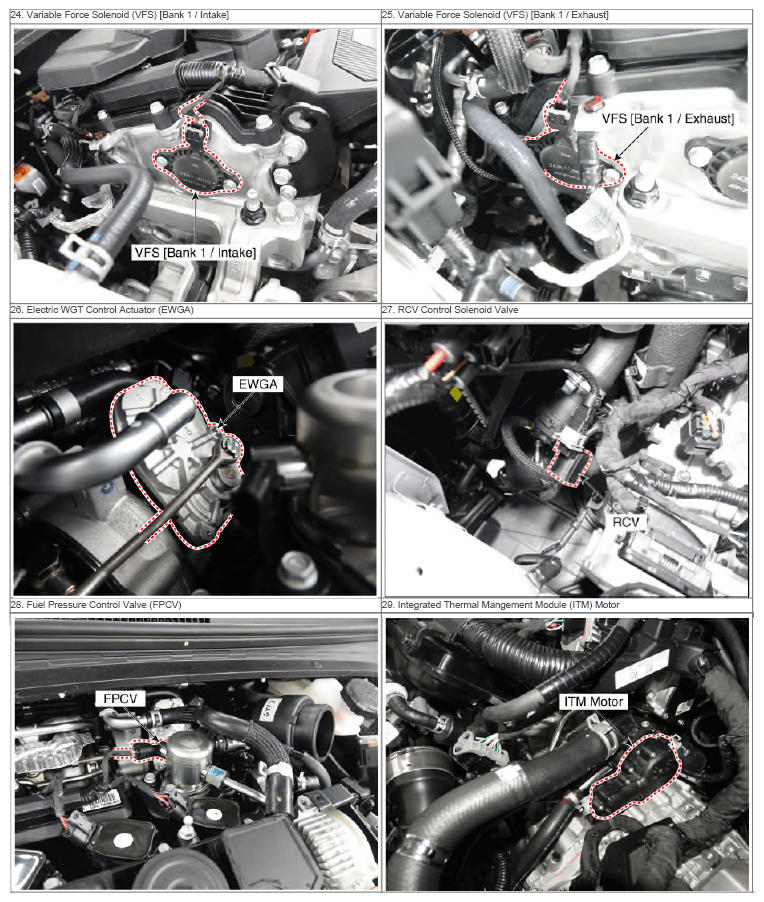

G14596329Courtesy of HYUNDAI MOTOR AMERICA

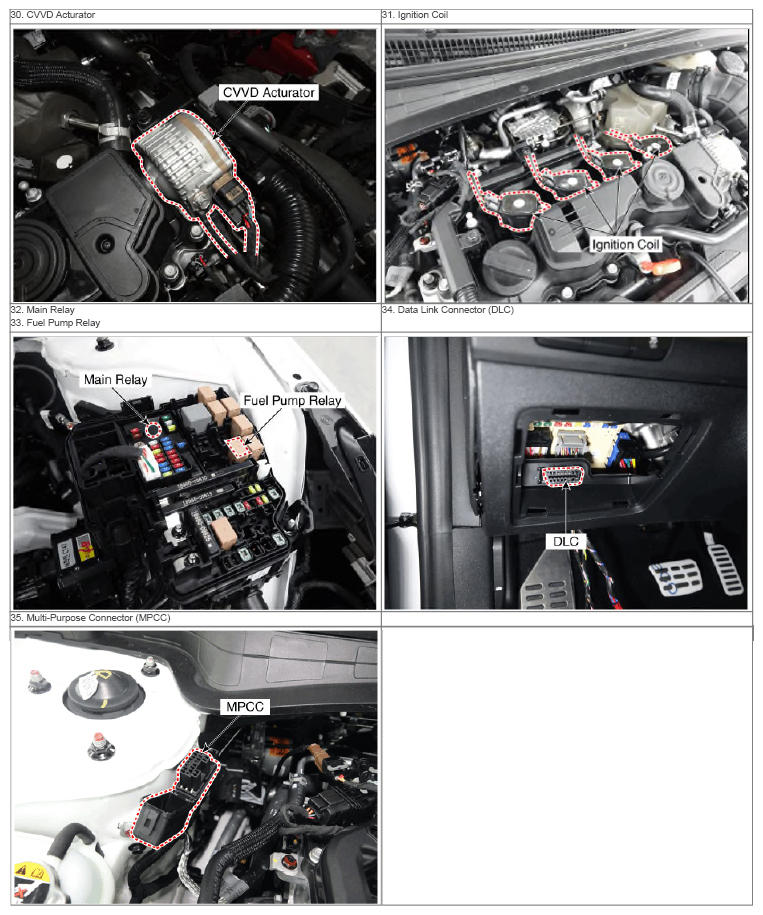

G14596330Courtesy of HYUNDAI MOTOR AMERICA
