Repair Procedures: Removal
- Turn ignition switch OFF and disconnect the battery negative (-) terminal.
- Remove the Intercooler outlet hose.
(Refer to Engine Mechanical - "INTERCOOLER ")

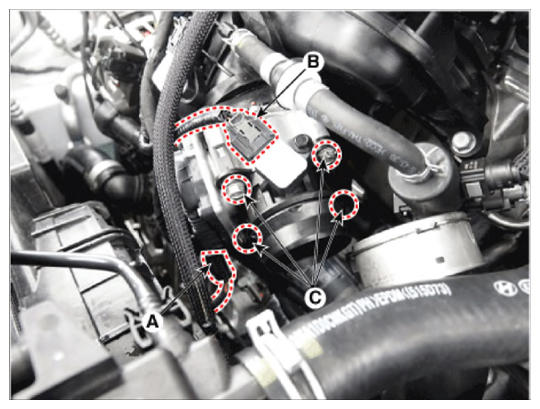

- Disconnect the ETC module connector (A).
- Disconnect MAPS connector (B).
- Remove the ETC mounting bolt (C).
Tightening Torque:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)
