ECTS #2
- Turn ignition switch OFF and disconnect the battery negative (-) terminal.
- Remove the alternator.
(Refer to Engine Mechanical System - "ALTERNATOR ")

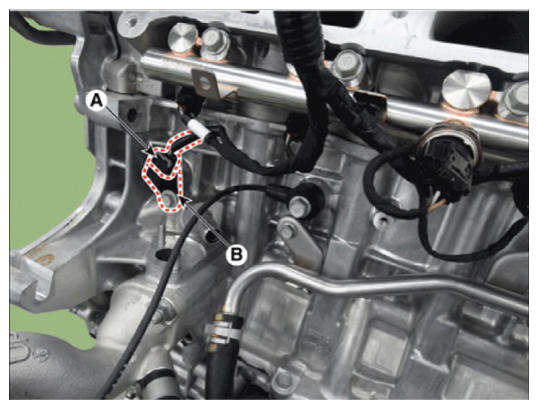

- Disconnect the ETC connector (A).
- Remove the engine coolant temperature sensor (B) after loose the mounting bolt.
Tightening Torque:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)
