Repair Procedures: Installation

  1. Install in the reverse order of removal.
    NOTE:
    • Do not reuse the injector fixing clip.
    • Do not reuse the mounting bolt.

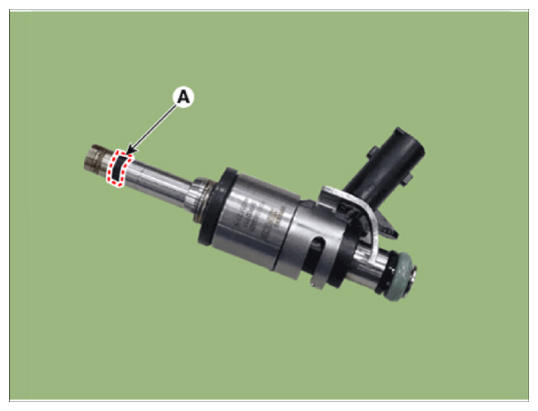

    • Do not reuse the combustion seal (A).
      G14596410Courtesy of HYUNDAI MOTOR AMERICA
    • Be careful not to apply oil to the combustion seal.

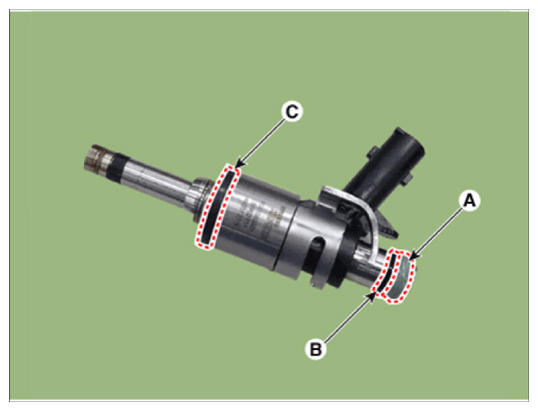

    • Do not reuse the O-ring (A), support disc (B), rubber washer (C).
      G14596411Courtesy of HYUNDAI MOTOR AMERICA
    • When replacing the rubber washer, the steal plate part should be faced the cylinder installation part and the rubber plate part should be faced the injector body part.
    • Apply engine oil to the injector O-ring.
    • When inserting the injector, be careful not to damage the injector tip
    • Do not reuse the high fuel pipe.
