Components And Components Location: Components

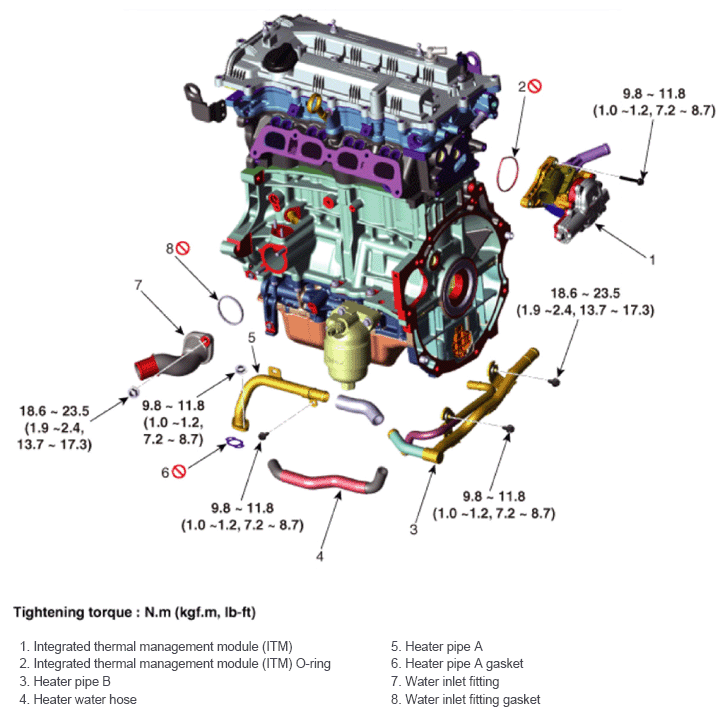

Fig 1: Integrated Thermal Management Module Components Location With Torque Specification
G14596456Courtesy of HYUNDAI MOTOR AMERICA

Tightening torque: N.m (kgf.m, lb-ft)
