Repair Procedures: Removal

  1. Turn ignition switch OFF and disconnect the battery negative (-) terminal

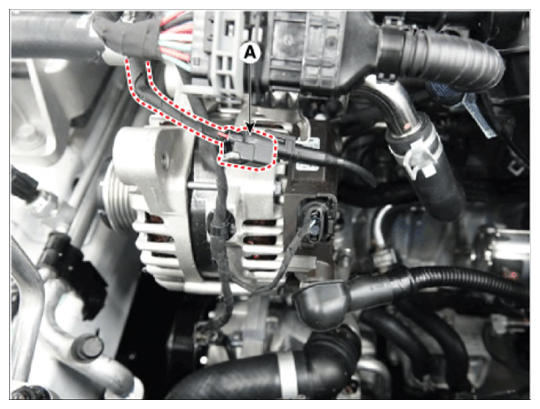

  2. Disconnect the knock sensor connector (A).
    G14596378Courtesy of HYUNDAI MOTOR AMERICA

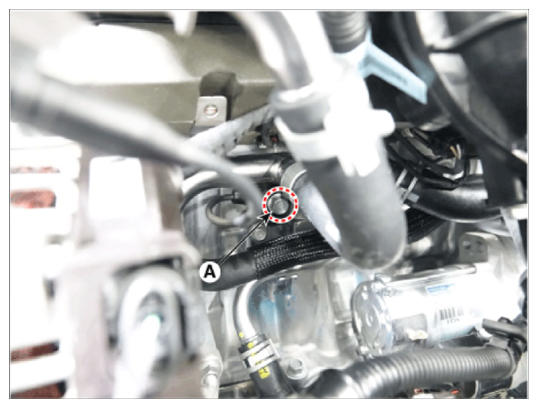

  3. Remove the installation bolt (A), and then remove the sensor from the cylinder block.

    Tightening Torque:

    18.6 - 24.5 N.m (1.9 - 2.5 kgf.m, 13.7 - 18.1 lb-ft)

    G14596379Courtesy of HYUNDAI MOTOR AMERICA
