Repair Procedures: Removal

  1. Turn ignition switch OFF and disconnect the battery negative (-) terminal.
  2. Disconnect the variable force solenoid connector (A).
  3. Remove the mounting bolt (B), and then remove the variable force solenoid (VFS) from the engine.

    Tightening Torque:

    9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

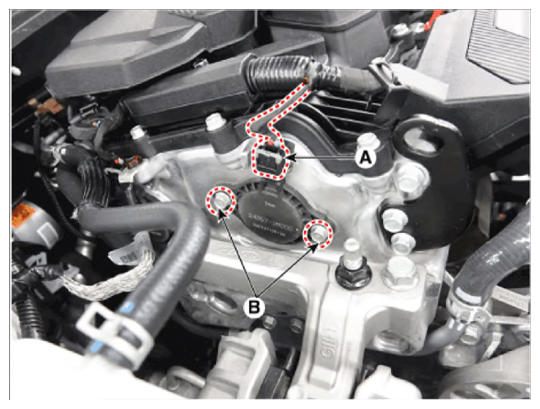

    [Bank 1/Intake]

    G14596431Courtesy of HYUNDAI MOTOR AMERICA

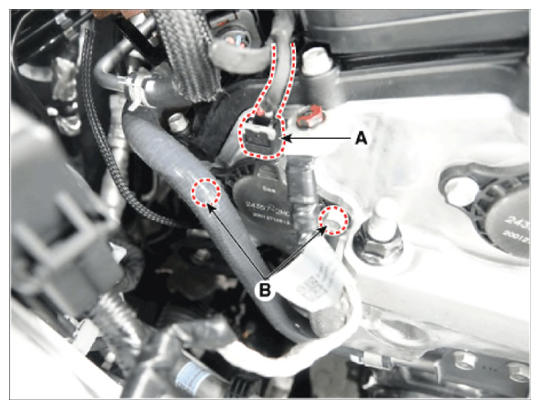

    [Bank 1/Exhaust]

    G14596432Courtesy of HYUNDAI MOTOR AMERICA
