Repair Procedures: Removal
CAUTION:
[In the case of installing used ECM]
[In the case of installing new ECM]
- When replacing the ECM, the vehicle equipped with the immobilizer must be performed procedure as below.
[In the case of installing used ECM]
- Perform
"ECM Neutral mode" procedure with diagnostic tool.
(Refer to Body Electric System - "IMMOBILIZER SYSTEM ")
- After finishing "ECM Neutral mode", perform "KEY TEACHING
" procedure with diagnostic tool.
(Refer to Body Electric System - "IMMOBILIZER SYSTEM ")
[In the case of installing new ECM]
- Perform "KEY TEACHING
" procedure with diagnostic tool.
(Refer to Body Electric System - "IMMOBILIZER SYSTEM ")
CAUTION:
[In the case of installing used ECM]
[In the case of installing new ECM]
- When replacing the ECM, the vehicle equipped with the smart key system (Button start) must be performed procedure as below.
[In the case of installing used ECM]
- Perform
"ECM Neutral mode" procedure with diagnostic tool.
(Refer to Body Electric System - "SMART KEY ")
- After finishing "ECM Neutral mode", insert the key (or press the start button) and turn it to the IGN ON and OFF position.
Then the ECM learns the smart key information automatically.
[In the case of installing new ECM]
- Insert the key (or press the start button) and turn it to the IGN ON and OFF position. Then the ECM learns the smart key information automatically.
- Turn ignition switch OFF and disconnect the negative (-) battery cable.

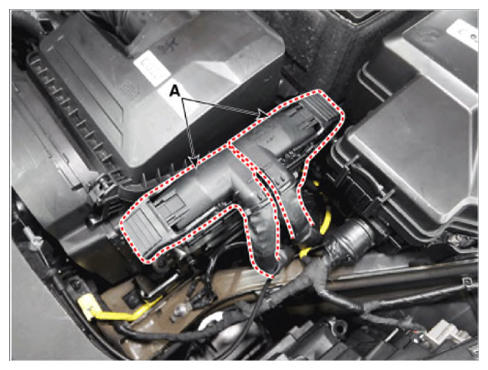

- Disconnect the ECM Connector (A).

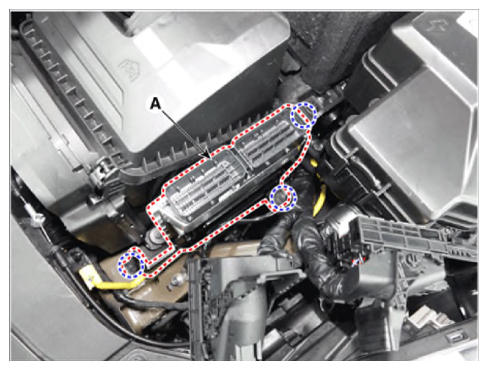

- Remove the installation bolts and then remove the ECM (A).
Tightening Torque:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

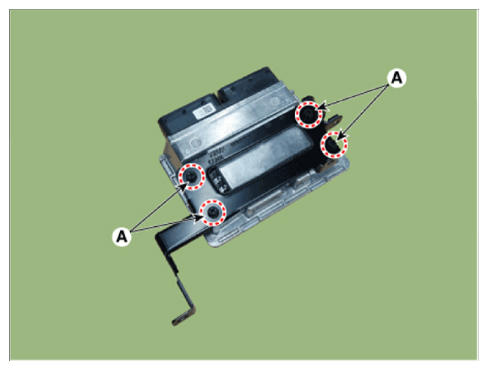

- Remove the installation bolts (A), and then remove the ECM from the bracket.
Tightening Torque:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)
