Repair Procedures: Removal
- Release the residual pressure in fuel line.
(Refer to Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")
CAUTION:- When removing the fuel pump relay, a Diagnostic Trouble Code (DTC) may occur.
- Delete the code with the diagnostic tool after completion of "Release Residual Pressure in Fuel Line" work.
- Turn the ignition switch OFF and disconnect the battery negative (-) cable.
- Remove the delivery pipe & injector assembly.
(Refer to Fuel Delivery System - "DELIVERY PIPE ")

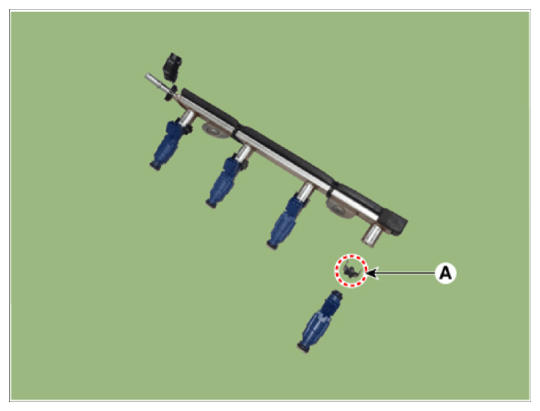

- Release the fixing clip (A), and then separate the injector from the delivery pipe.
