Components Location

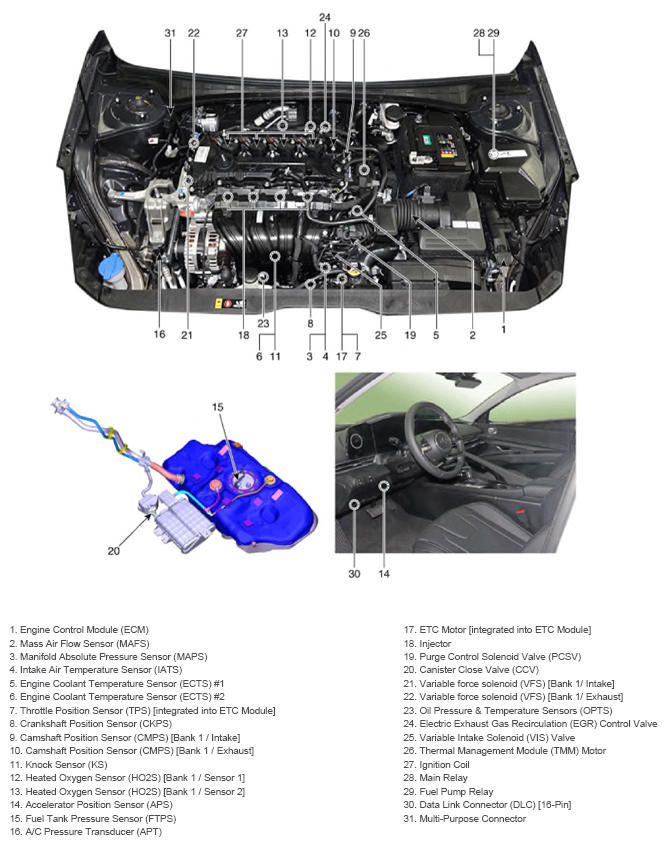

G14607538Courtesy of HYUNDAI MOTOR AMERICA

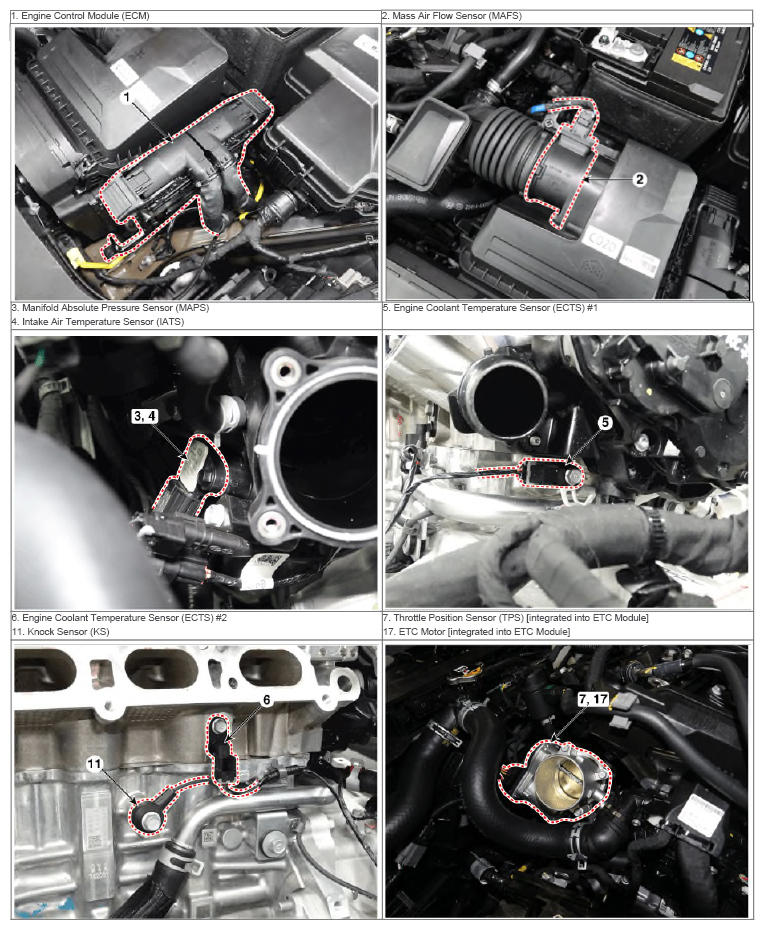

G14607539Courtesy of HYUNDAI MOTOR AMERICA

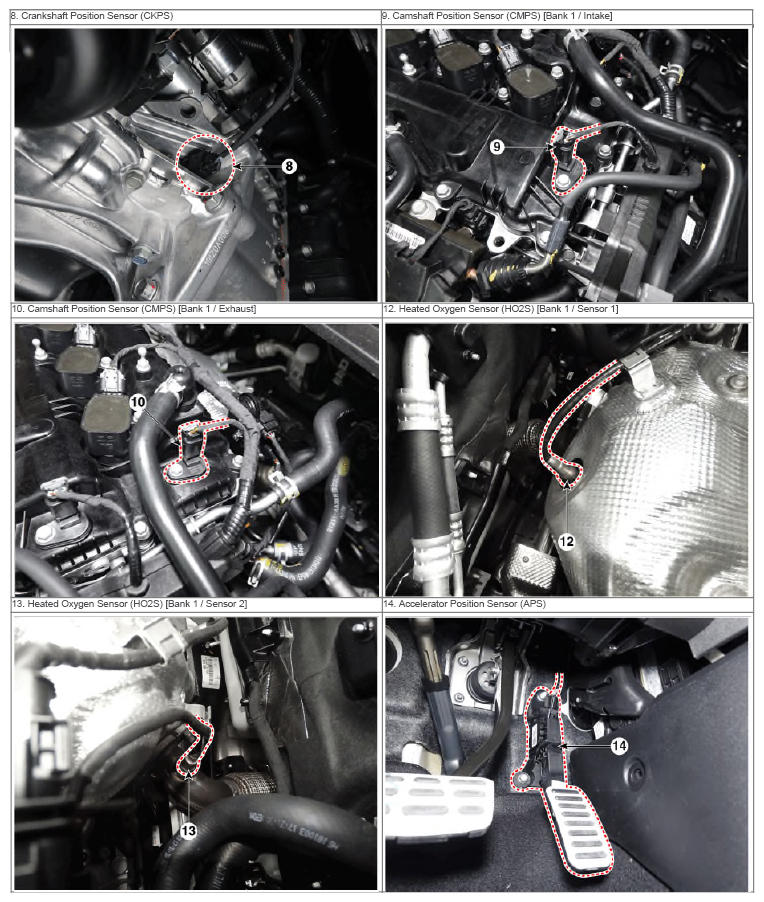

G14607540Courtesy of HYUNDAI MOTOR AMERICA

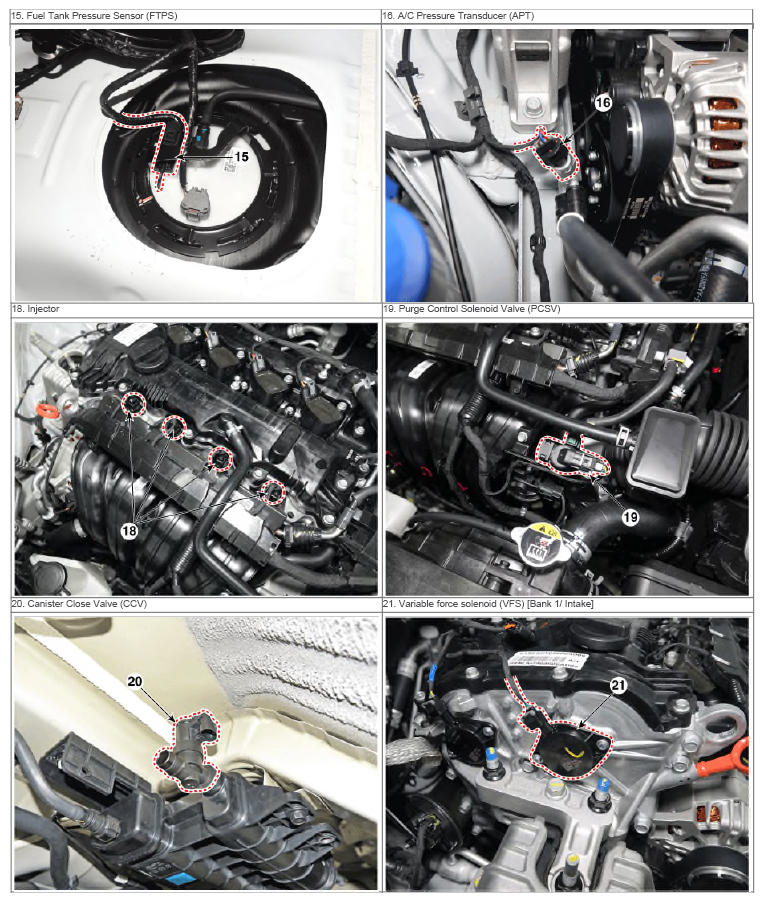

G14607541Courtesy of HYUNDAI MOTOR AMERICA

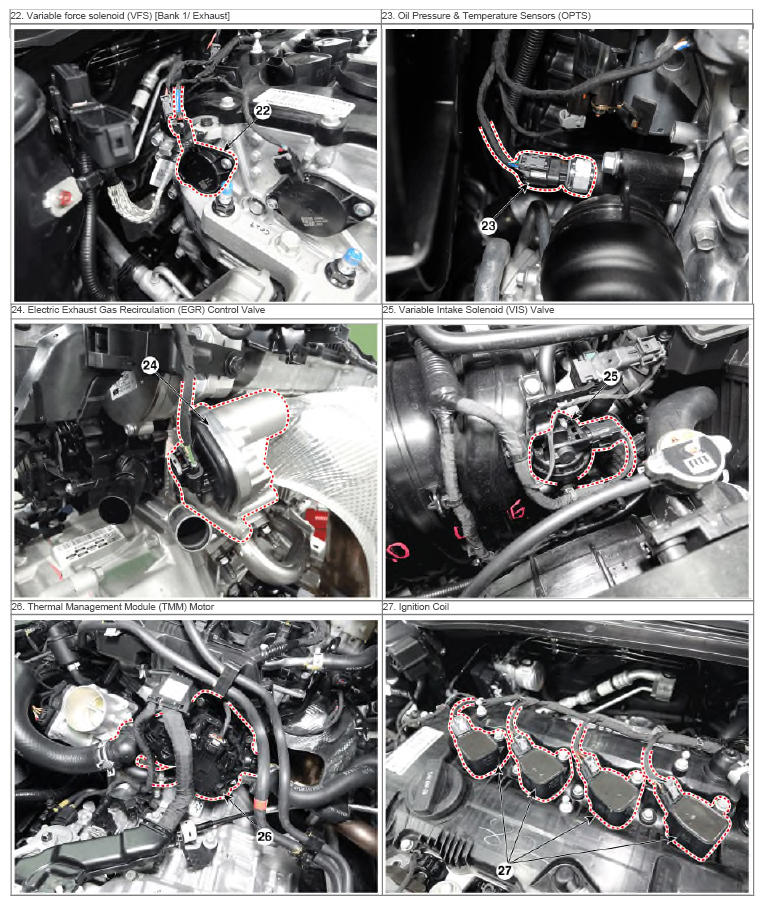

G14607542Courtesy of HYUNDAI MOTOR AMERICA

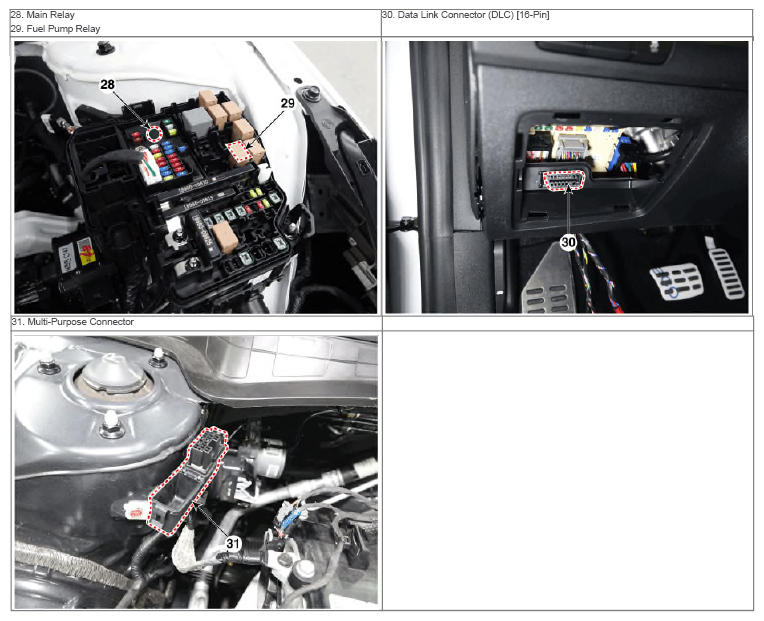

G14607543Courtesy of HYUNDAI MOTOR AMERICA
