Bank 1/Intake
- Turn the ignition switch OFF and disconnect the battery negative (-) cable.
- Remove the air cleaner assembly
(Refer to Engine Mechanical System - "AIR CLEANER ")

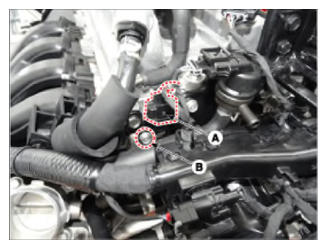

- Disconnect the camshaft position sensor connector (A).
- Remove the installation bolt (B), and then remove the sensor.
