Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the negative (-) battery cable.
  2. Remove the air cleaner assembly.

    (Refer to Engine Mechanical System - "AIR CLEANER ")

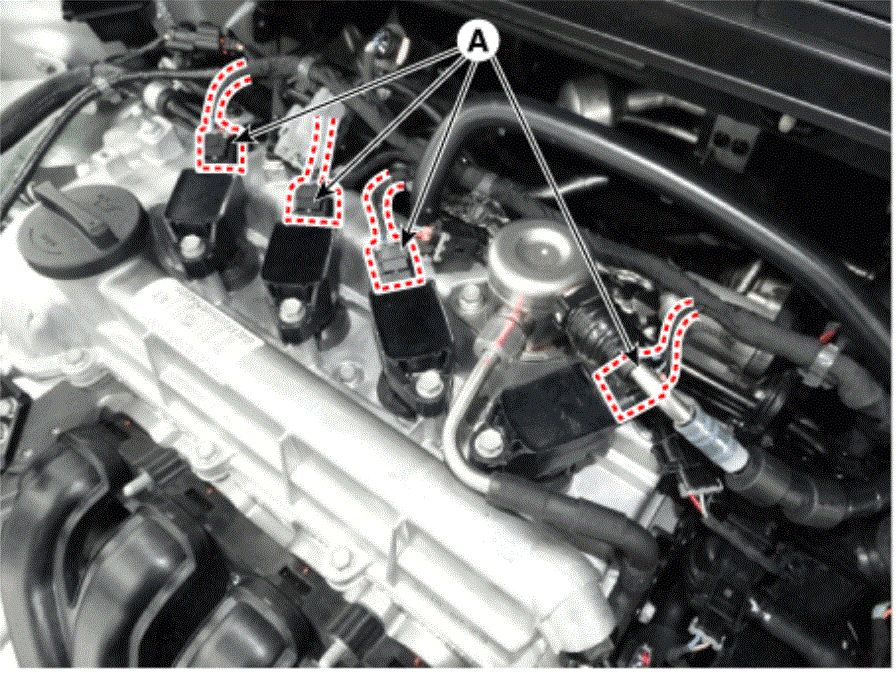

  3. Disconnect the ignition coil connector (A).
    G13562737Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:
    • When removing the ignition coil connector, pull the lock pin (A) and push the clip (B).
      G13562738Courtesy of HYUNDAI MOTOR AMERICA

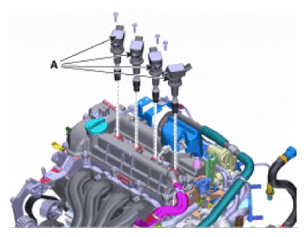

  4. Remove the ignition coil (A).

    Ignition coil installation bolts:

    9.8-11.8 N.m (1.0-1.2 kgf.m, 7.2-8.7 Ib-ft)

    G13562739Courtesy of HYUNDAI MOTOR AMERICA
