Accelerator Position Sensor (APS): Specifications

Accelerator Position Output Voltage (V)
APS1 APS2
C.T 0.7-0.8 0.325 - 0.425
W.O.T 3.98-4.22 1.98-2.13

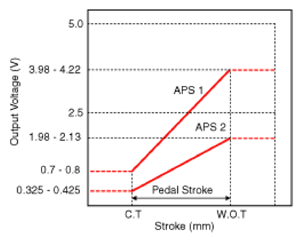

G13563031Courtesy of HYUNDAI MOTOR AMERICA
