Components Location

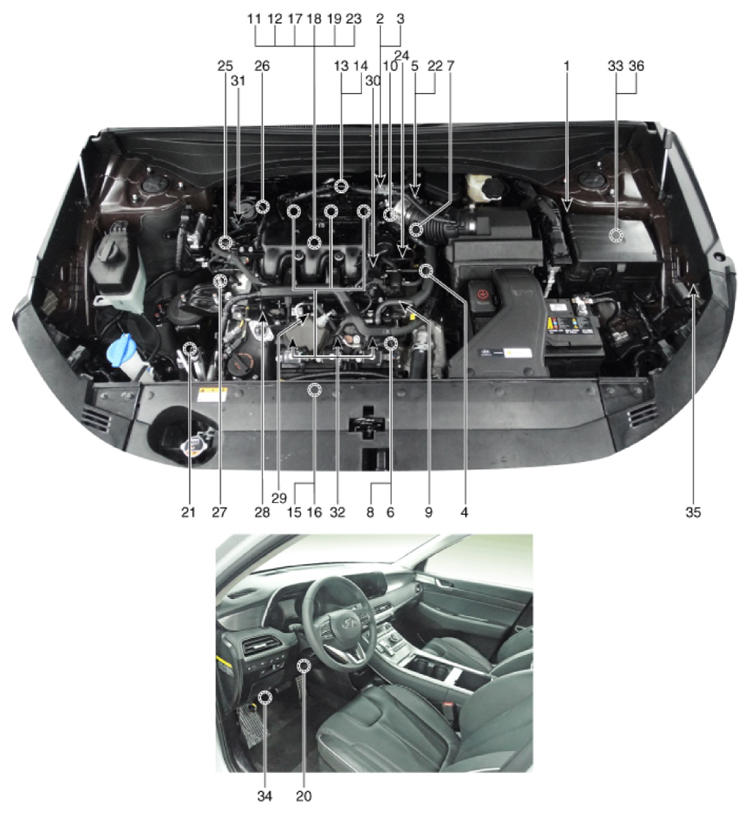

G14423789Courtesy of HYUNDAI MOTOR AMERICA

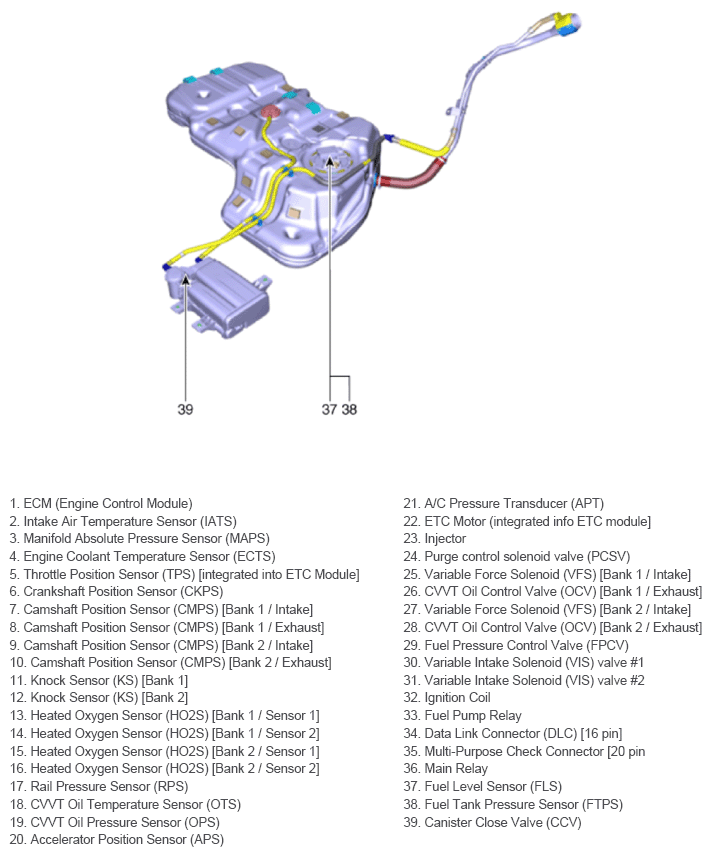

G14423790Courtesy of HYUNDAI MOTOR AMERICA

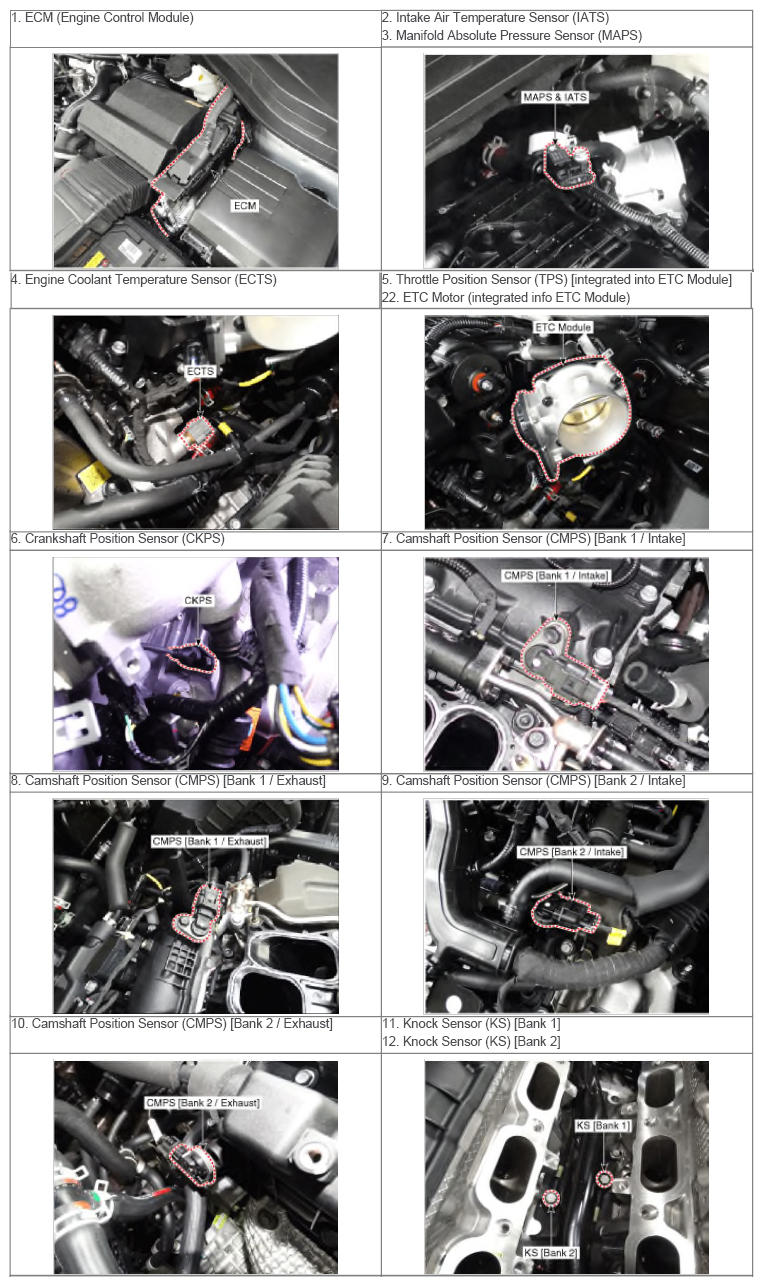

G14423791Courtesy of HYUNDAI MOTOR AMERICA

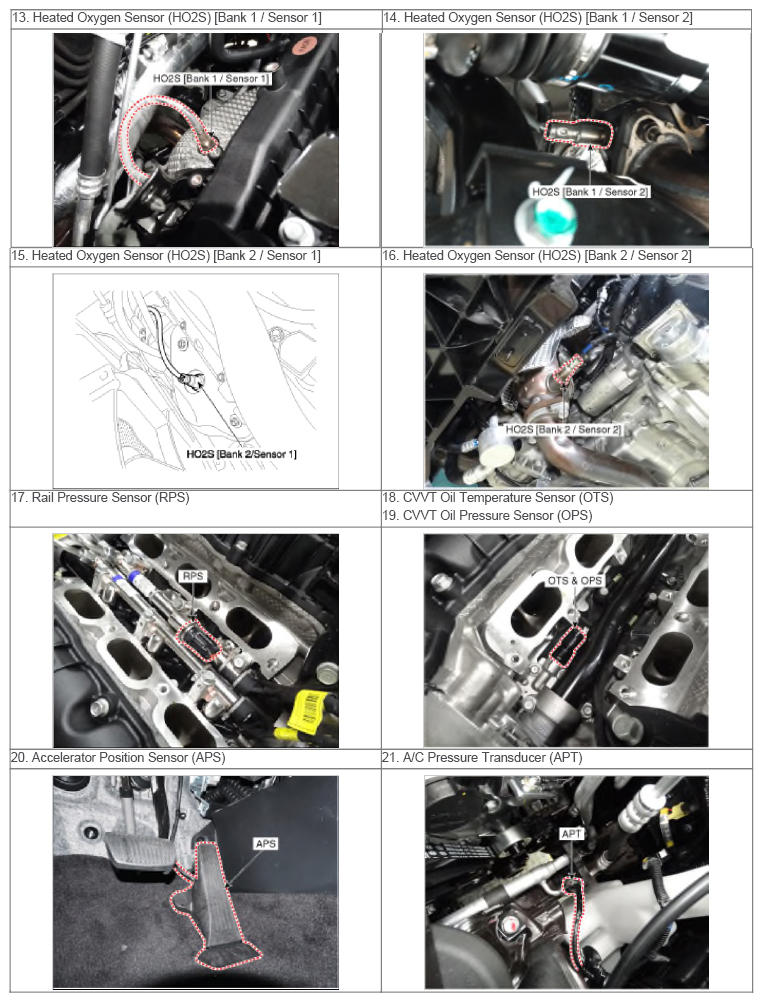

G14423792Courtesy of HYUNDAI MOTOR AMERICA

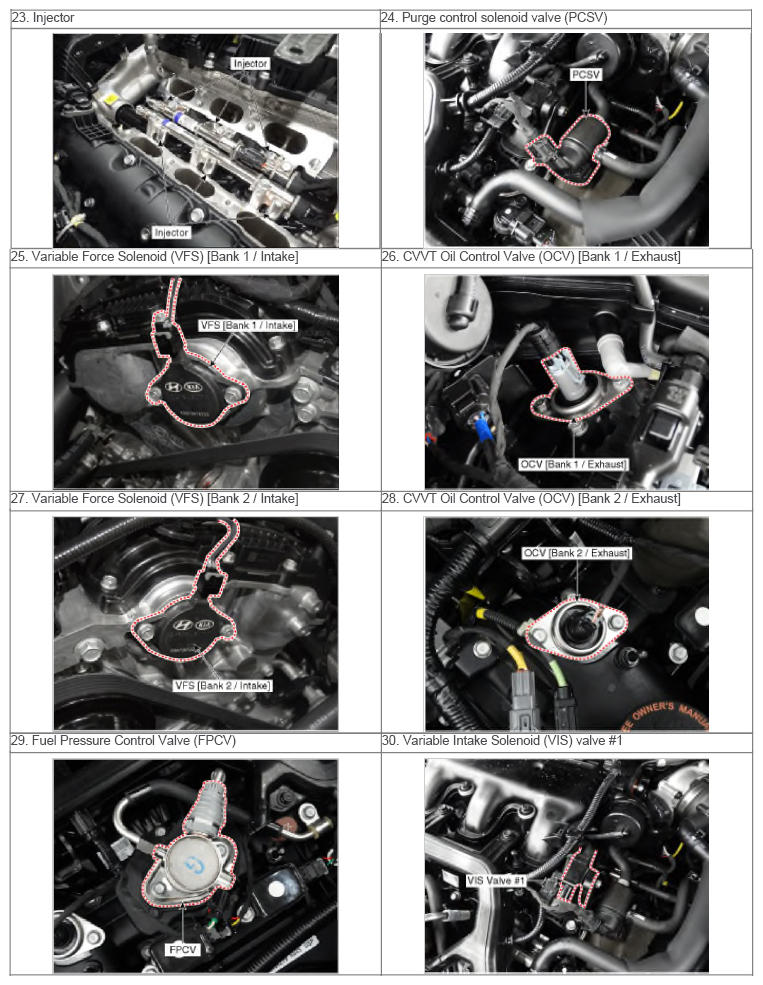

G14423793Courtesy of HYUNDAI MOTOR AMERICA

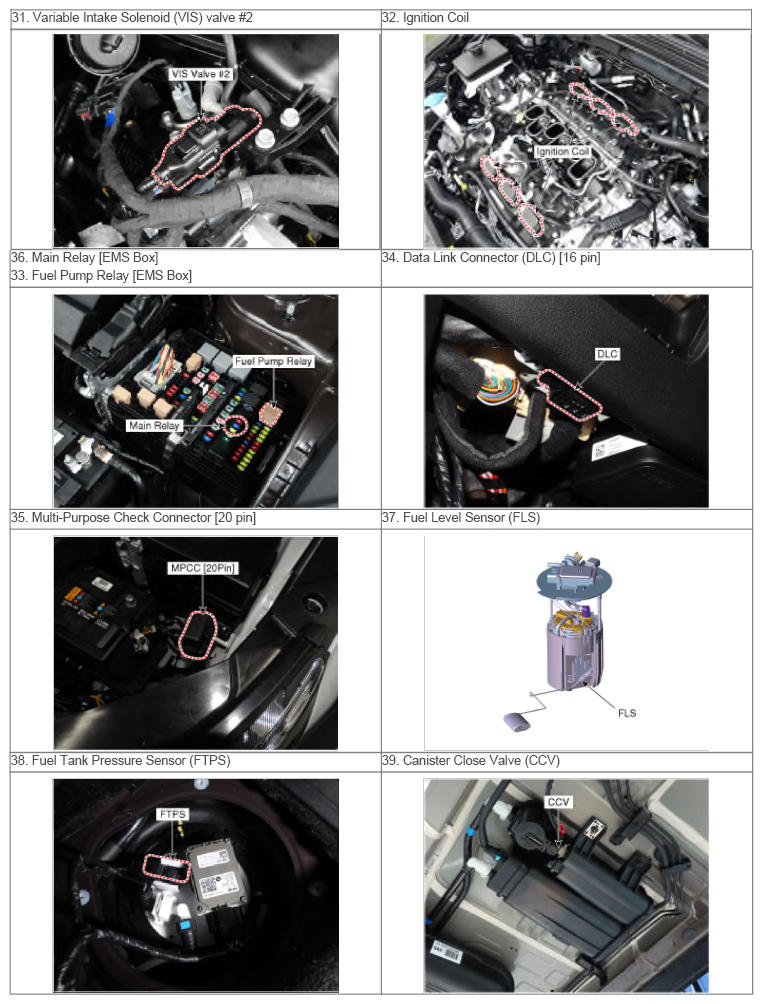

G14423794Courtesy of HYUNDAI MOTOR AMERICA
