Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.

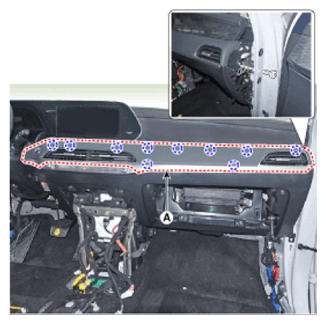

  2. Remove the crash pad center garnish.
    G14427783Courtesy of HYUNDAI MOTOR AMERICA

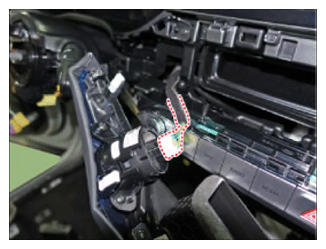

  3. Disconnect the start/stop button connector.
    G14427784Courtesy of HYUNDAI MOTOR AMERICA
  4. Remove the start/stop button (A) after removing the screws.
    G14427785Courtesy of HYUNDAI MOTOR AMERICA
