CVVT Oil Control Valve [Bank 1/Exhaust]
- Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
- Remove the cylinder head cover.
(Refer to Engine Mechanical System - "CYLINDER HEAD COVER ")

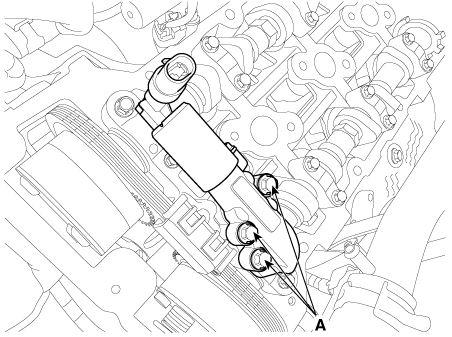

- Remove the installation bolt (A), and then remove the valve from the engine.
CVVT oil control valve mounting bolt:
9.8-11.8 N.m (1.0-1.2 kgf.m, 7.2-8.7 lb-ft)
