[Bank 2/Intake]

  1. Turn ignition switch OFF and disconnect the battery negative (-) terminal.

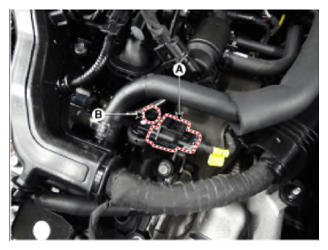

    Crankshaft Position Sensor mounting bolt:

    7.8 - 8.8 N.m (0.8 - 0.9 kgf.m, 5.8 - 6.5 lb-ft)

    G14423840Courtesy of HYUNDAI MOTOR AMERICA
