Repair Procedures: Removal

Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
Remove the oxygen sensor (B) after disconnect the Connector (A).
NOTE:
- Note that the SST (Part No.: 09392-2H100 or 09392-1Y100) can be used for removing the heated oxygen sensor.
Heated oxygen sensor:

35.3 - 45.1 N.m (3.6 - 4.6 kgf.m, 26.0 - 33.3 lb-ft)

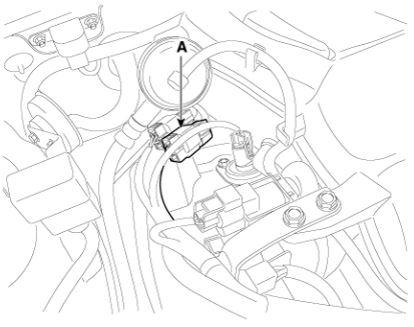

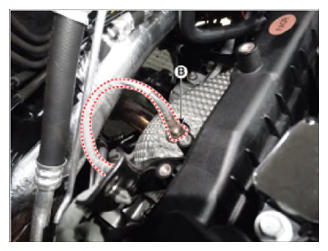

[Bank 1/Sensor 1]

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA

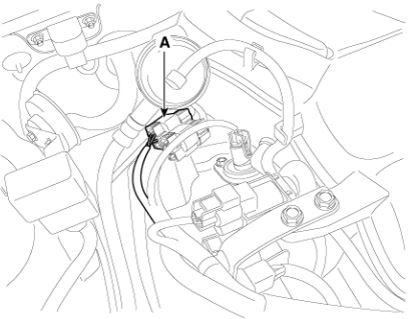

[Bank 1/Sensor 2]

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA

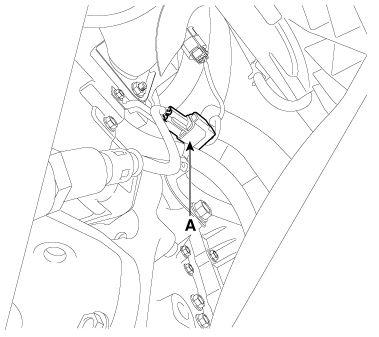

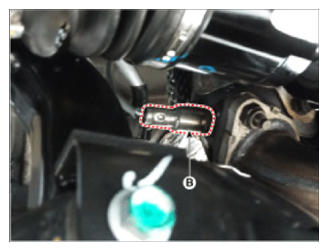

[Bank 2/Sensor 1]

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA

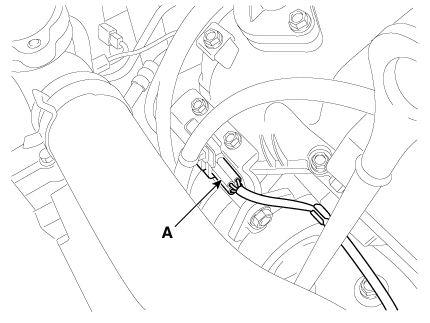

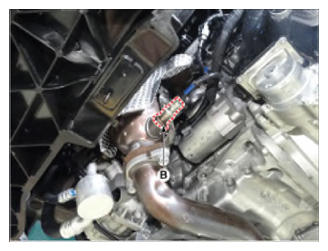

[Bank 2/Sensor 2]

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA
