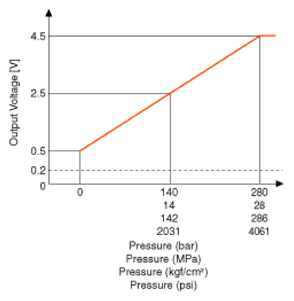

Rail Pressure Sensor (RPS)

Pressure Output Voltage (V)
[Vref=5V]
bar [MPa (kgf/cm2 , psi)]
0 0 (0, 0) 0.5
140 14 (142, 2031) 2.5
280 28 (286, 4061) 4.5
G14423765Courtesy of HYUNDAI MOTOR AMERICA
