Repair Procedures: Removal: Notes

NOTE:
  • Be careful that no contaminant enters into spark plug holes.

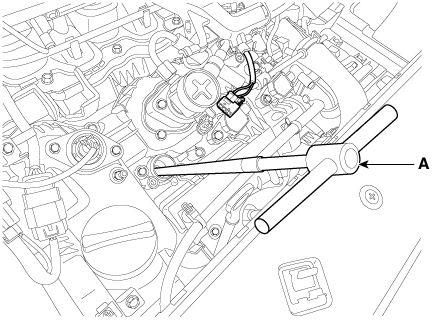

  • Use the spark plug wrench (A) to prevent the damage on the spark plug.
    G14423623Courtesy of HYUNDAI MOTOR AMERICA
NOTE:
  • When removing the ignition coil connector, pull the lock pin (A) and push the clip (B).
    G14423624Courtesy of HYUNDAI MOTOR AMERICA
