Repair Procedures: Removal

CAUTION:

Be careful not to damage the parts located under the vehicle (floor under cover, fuel filter, fuel tank and canister) when raising the vehicle using the lift.
(Refer to General Information - "LIFT AND SUPPORT POINTS ")
When the solenoid valve Diagnostic Trouble Codes (DTC) is on, perform the following procedure to replace it.
Automatic transaxle is composed of delicate components. Be careful not to cause any damage on the component in the course of assembly and disassembly.
Maintain clean condition so that foreign substance does not get into the automatic transaxle.
Use a coated apron, latex gloves, and stainless tray to prevent foreign substance from getting into the transaxle.
Automatic transaxle fluid (ATF) can be reused. Collect it using a clean 10 liter beaker.

Turn ignition switch OFF and disconnect the negative (-) battery cable.
Remove the battery and battery tray.
(Refer to Engine Electrical System - "REMOVAL , and BATTERY TRAY ")
Remove the air duct and air cleaner assembly.
(Refer to Engine Mechanical System - "AIR CLEANER ")
Remove the under cover.
(Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")
Drain the coolant. (If equipped ATF warmer)
(Refer to Engine Mechanical System - "COOLANT ")

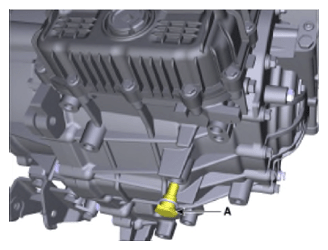

Loosen the drain plug (A) and reinstall the drain plug after draining ATF totally.
Tightening torque:

33.3 - 43.1 N.m (3.4 - 4.4 kgf.m, 24.6 - 31.8 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
NOTE:
- Replace the gasket before reinstalling the drain plug.
Loosen the fixing bolt (A) and then removing the bracket.
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
Loosen the fixing bolts (A) and then removing the bracket.
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

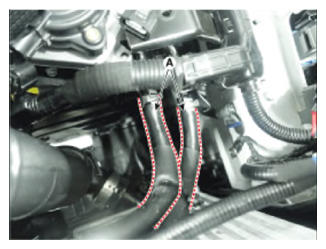

Separate the ATF cooler hose (A).

Courtesy of HYUNDAI MOTOR AMERICA
CAUTION:
- Carefully install the clamp not to damage the hose.
- Install the clamp in a correct direction not to be interfered with other parts.
- After the installation, start the engine and then check if there are any leakages from the hose.

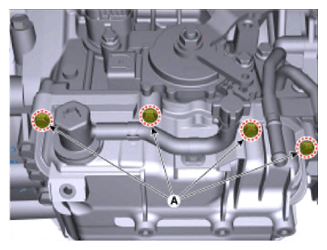

Loosen the upper bolts (A) of the valve body cover.
Tightening torque:

11.8 - 13.7 N.m (1.2 - 1.4 kgf.m, 8.7 - 10.1 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

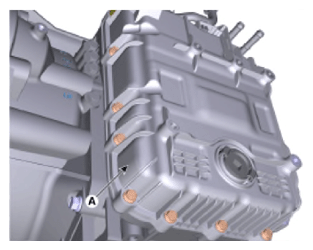

Loosen the bolts and then removing the valve body cover (A).

Tightening torque:

11.8 - 13.7 N.m (1.2 - 1.4 kgf.m, 8.7 - 10.1 lb-ft)

CAUTION:

Be careful when removing the valve body cover because the remaining ATF remains in the valve body cover.

Courtesy of HYUNDAI MOTOR AMERICA

CAUTION:

Replace the gasket (A) before reinstalling the valve body cover.

After the installation, start the engine and then check if there are any leakages from the valve body cover.

Courtesy of HYUNDAI MOTOR AMERICA

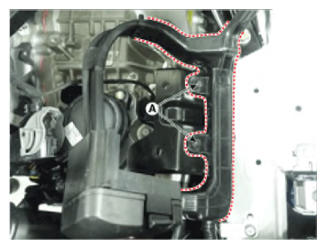

Loosen the bolts and then separate the main harness (A).
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

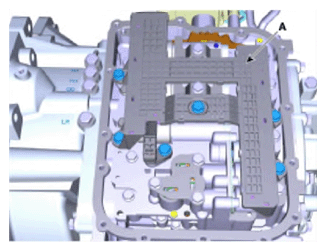

Loosen the bolts and then removing the valve body assembly (A).

Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

CAUTION:

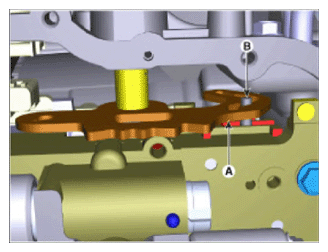

Attach the manual pin (B) to the detent lever (A) and assemble the valve body.

Courtesy of HYUNDAI MOTOR AMERICA

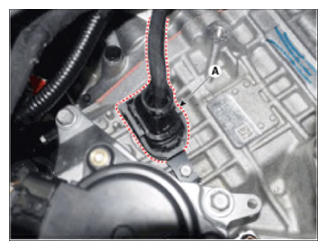

Disconnect the speed sensor connector (A).

Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the main connector (A).

Courtesy of HYUNDAI MOTOR AMERICA

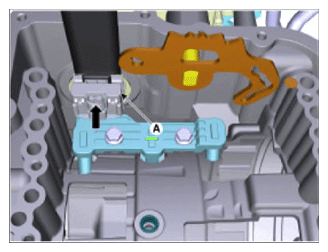

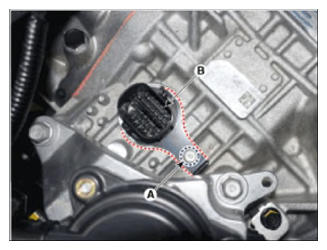

Loosen the bolt and then removing the fixing of clip (A).
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

Remove the main connector (B) by pushing it downward.

Courtesy of HYUNDAI MOTOR AMERICA

CAUTION:

Replace the O-Ring (A) before reinstalling solenoid valve connector.

Courtesy of HYUNDAI MOTOR AMERICA
