Repair Procedures: Removal

  1. Turn ignition switch OFF and disconnect the negative (-) battery cable.

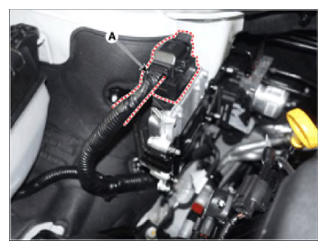

  2. Disconnect the connector (A).
    G14424370Courtesy of HYUNDAI MOTOR AMERICA

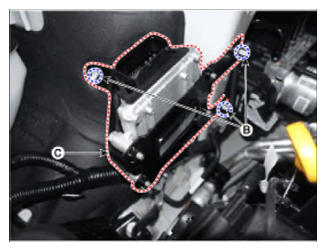

  3. Remove the SBW Control Unit (SCU) (C) after removing the nuts (B).
    G14424371Courtesy of HYUNDAI MOTOR AMERICA
